How to Frame a Window Opening

Did you know that nearly one in five DIY window installations fails due to improper structural support? This startling fact highlights why creating a solid framework is the most critical step in your project.

We will guide you through this essential carpentry skill. It blends precise cutting with a deep understanding of how loads are distributed in your home’s walls. A secure and correctly sized opening is the foundation for a successful installation.

Careful planning and accurate measurements are non-negotiable. Every component, from king studs to headers, must work together seamlessly. This synergy maintains your building’s integrity while accommodating the new unit.

Modern window technology has introduced changes, like advanced seals and slimmer designs. Yet, the fundamental structural principles for a sturdy opening remain constant. Our guide covers preparation, measurement strategies, and installation methods.

Whether you are creating a new space or modifying an old one, mastering the complete process is vital. It ensures your windows perform flawlessly for years, protecting your home’s structure and energy efficiency.

• Proper structural framing is critical for a successful and long-lasting window installation.
• Precision in planning and measurement is the foundation of the entire project.
• Key components like studs and headers work together to support the window and the wall above.
• Modern window designs influence framing techniques, but core structural principles are unchanged.
• A well-executed framing project ensures optimal window performance and home integrity.

Proper structural framing serves as the backbone for successful window installations, ensuring long-term performance and safety. This fundamental building skill involves creating a framework within your wall system that supports both the window unit and structural loads from above.

At Total Home Windows & Doors, we’ve manufactured high-quality products since 2007 in the Greater Toronto Area. Our nearly two decades of experience give us deep understanding of Canada’s specific structural and climate requirements.

The load transfer mechanism is crucial for structural integrity. Cripple studs at the top carry weight from the top plate to the header. King and jack studs along the sides support the header and channel forces down to the foundation.

Essential materials include dimensional lumber for structural members, fasteners, shims, and sealants. Understanding this anatomy before cutting prevents costly mistakes that could compromise your home’s building integrity.

Modern window technology continues to evolve, requiring precise framing techniques for optimal results. Manufacturers like us develop innovative solutions that enhance performance while maintaining structural safety standards.

Before any cutting begins, meticulous preparation of the rough opening ensures your new unit aligns with both structural needs and aesthetic harmony. We start by evaluating the surrounding wall and its features.

Consistency with nearby units is crucial. The reveal between identical windows must remain uniform. Shifting the position can disrupt the entire wall’s visual balance.

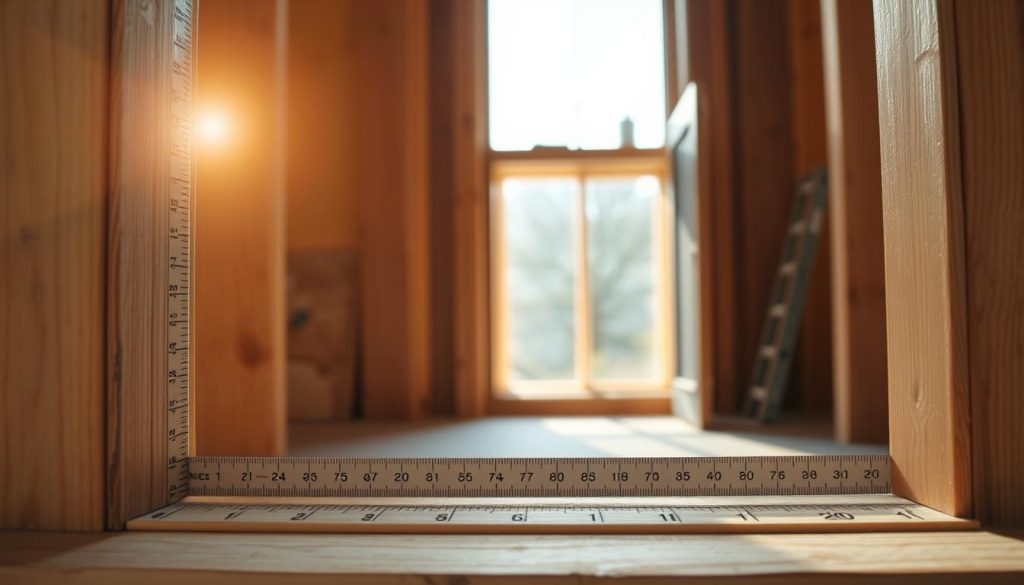

Calculate the final opening size from the finished floor. Add the header size, the window jamb height, and the standard sill height of 30 inches. Include an extra half-inch for adjustment.

Mark the bottom cut by measuring up 27 inches from the floor. This accounts for the 30-inch sill height minus the 3-inch rough sill assembly.

Your width calculations must include the unit’s dimensions plus the thickness of the jack studs on each side. Allow space for shims as specified by the manufacturer.

Always check that the existing wall studs are perfectly plumb and level. Any irregularities must be corrected before layout. This ensures your installation will be square.

Maintain consistent header heights if working near a door opening. This creates a professional appearance and simplifies the overall framing process for the wall.

When installing a new window in a finished wall, strategic planning helps maintain structural integrity while minimizing disruption to exterior finishes. We begin by removing interior wall coverings and insulation to expose the stud framework.

This exposure allows us to assess which existing studs can serve as king studs and which must be modified. For exterior walls, preserving as much original framing as possible protects siding attachments.

We mark cutting lines on all faces of studs within the opening area using a square. Temporary supports under the top plate ensure safety during cutting operations.

Header size calculation is critical for proper load distribution. The jack stud length derives from subtracting header height from the total opening measurement.

Assembly begins by positioning the header while sliding jack studs underneath. We secure these pieces with 3-inch screws along their length.

Proper toenailing techniques create solid connections between the header top and surrounding studs. Continuous squaring ensures perfect alignment throughout the process.

The rough sill installation completes the framework. We measure between jack studs, cut two pieces to this length, and nail them together for doubled strength.

Modern window technology has evolved to tackle specific weak points that compromise both security and energy efficiency. Our proprietary Total Seal system represents a significant advancement through its integrated lock point design.

This innovation addresses air infiltration at the top corner of windows, where traditional designs often fail. Temperature-controlled air escapes while outside air enters at this critical junction.

The system enhances security by distributing force across multiple lock points rather than concentrating stress. This makes forced entry significantly more difficult while improving overall structural integrity.

When framing for units with Total Seal technology, precise rough opening dimensions are essential. Proper engagement of the lock point system ensures full performance benefits.

This technology benefits both our windows and doors, providing consistent performance throughout your home. The structural strength improvements help products resist wind loads and operational stresses.

In Canada’s demanding climate with temperature extremes, these advancements translate to longer service life. Your installation will maintain optimal performance for years to come.

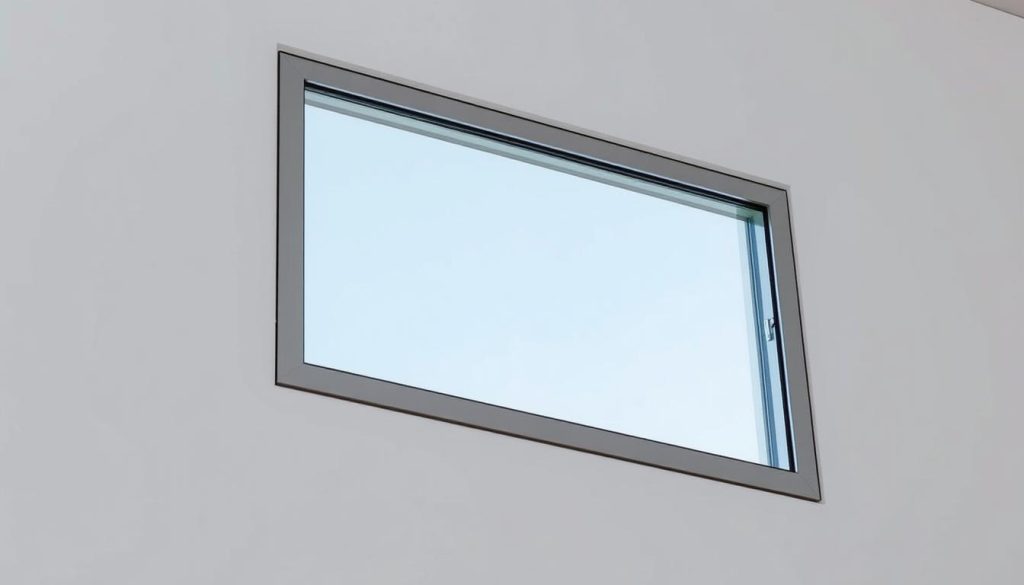

The UltraSlim Series represents our response to modern aesthetic preferences that prioritize maximum visible glass and clean sightlines. This innovative design features a profile half an inch slimmer on each side compared to traditional windows.

For any given rough opening, these windows provide noticeably more glass area. Better sightlines to the outdoors create a more expansive feel in your living spaces.

The engineering breakthrough lies in the increased frame depth. We’ve enhanced it from 3-1/4 inches to 4-9/16 inches. This greater depth maintains rigidity despite the reduced width profile.

Structural benefits include improved stability that resists operational wear. There’s reduced risk of sagging even with larger window sizes. The design also supports modern triple-glazing units for superior energy efficiency.

When planning your new window installation, consider how the increased frame depth affects projection into the wall cavity. Interior and exterior trim details may require adjustment.

The slimmer side profiles create a contemporary appearance complementing modern architectural styles. Meanwhile, the deeper frame ensures long-term performance in Canadian climates.

Proper size window calculations must account for both the reduced width and increased depth. Allow adequate shimming space around all four edges for precise alignment and sealing.

Filler boards serve as the optimal solution for reducing window opening dimensions while maintaining structural integrity. When an opening exceeds requirements, thick shims create instability while compromising nailing fin attachment.

We recommend specific materials for precise size adjustments. Use ½-inch plywood strips for minor corrections or 1x boards for ¾-inch reductions. For openings requiring more than 3-inch adjustments, complete reframing ensures proper support.

Weatherproofing remains critical throughout the installation process. Apply exterior-grade sealant around all filler board perimeters before installation. This prevents water infiltration while adding holding power to the connection.

Proper sequencing matters when all four sides need adjustment. Install top and bottom pieces first, then wedge the sides between them. This configuration mimics how jack studs support headers while preventing bottom board curling.

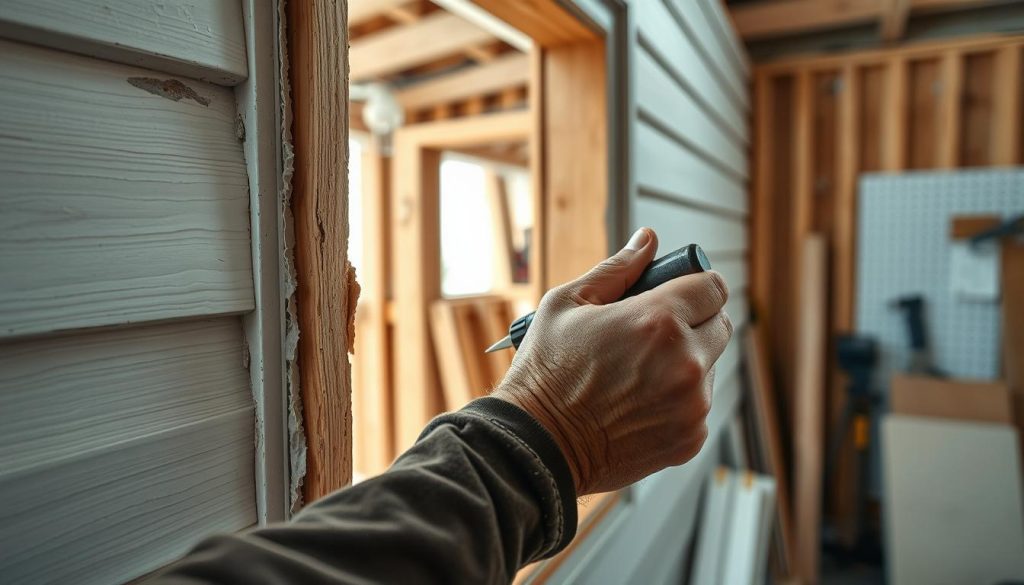

Exterior work requires careful siding removal. Drill 5/8-inch reference holes at each corner to mark cutting lines from inside. Use a jigsaw with a guide fence for clean, accurate cuts through siding materials.

The final exterior trim installation completes your project. It enhances your home’s appearance while directing water away from the window frame. This protects both the new unit and wall assembly from moisture damage.

Mastering window framing combines technical knowledge with practical skills for lasting results. Success depends on understanding load paths and precise measurements. Quality materials and attention to component relationships create a solid foundation.

The frame you build affects long-term performance in energy efficiency and weather resistance. It ensures smooth operation and enhances your home’s aesthetic appeal. Modern innovations from manufacturers like Total Home Windows & Doors require precise framing.

Proper height, width accuracy, and attention to all sides ensure correct installation. Your window will operate smoothly through decades of Canadian weather extremes. Whether DIY or professional, mastering these techniques builds confidence.

Careful planning with quality materials creates openings that meet structural codes. Consider consulting experienced manufacturers when selecting windows. This ensures compatibility between your framing approach and modern system requirements.
