Awning replacement windows that swing outward from the bottom, allowing fresh air flow even during light rain. Energy-efficient vinyl windows designed to reduce heat loss, minimize air leaks, and keep your home comfortable year-round in Canada.
We’ll walk you through real numbers
By submitting this form, you agree to our Terms and Conditions

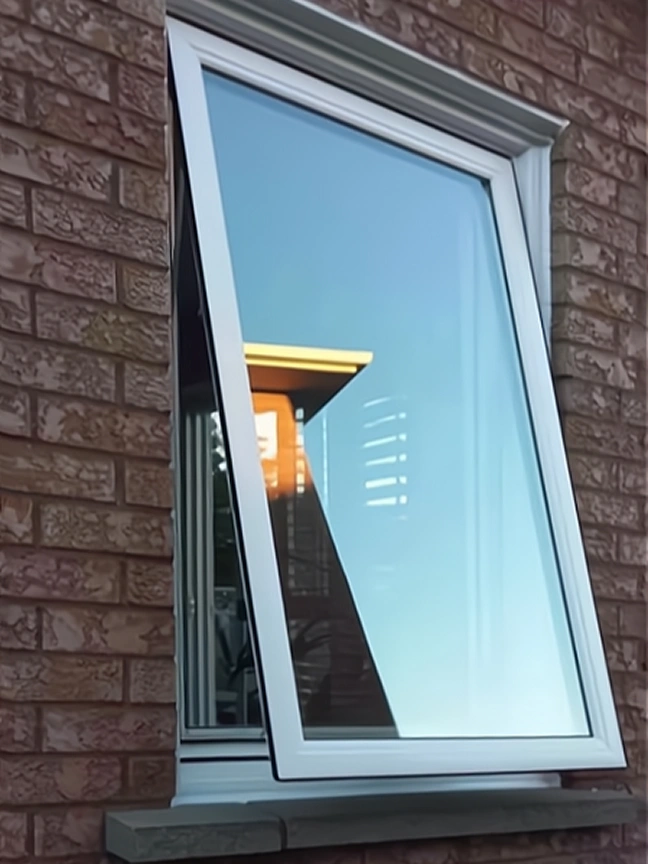

Awning windows are hinged at the top and open outward from the bottom. This window style allows fresh air circulation while helping protect the opening from light rain and debris. Built with durable vinyl construction, these low-maintenance windows provide smooth, easy operation for everyday use.
When closed, the sash compresses evenly against the frame, creating a tighter seal that helps reduce air leaks, limit heat transfer, and support long-term energy-efficient performance — making awning replacement windows a practical choice for Ontario’s changing weather conditions.

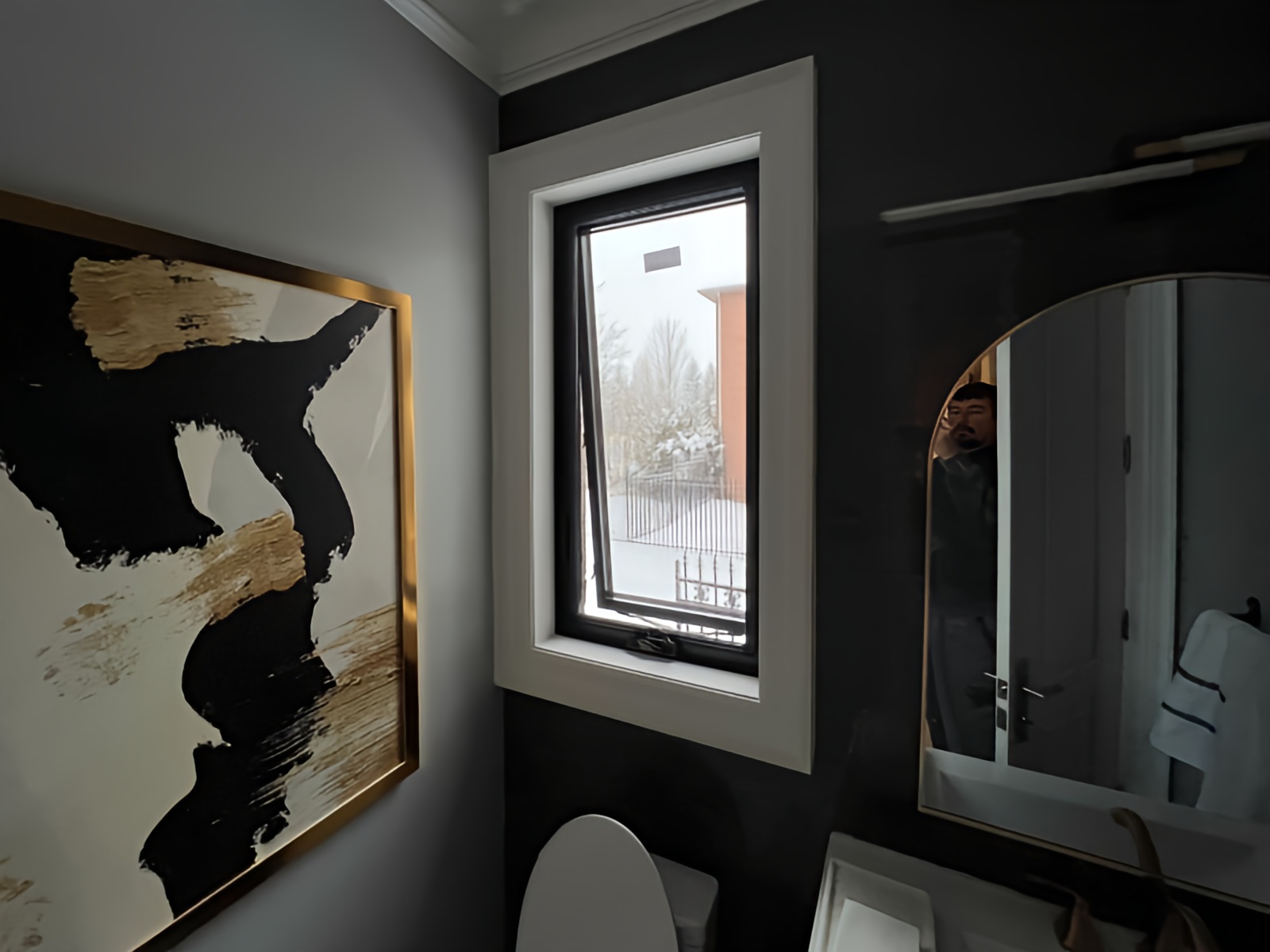

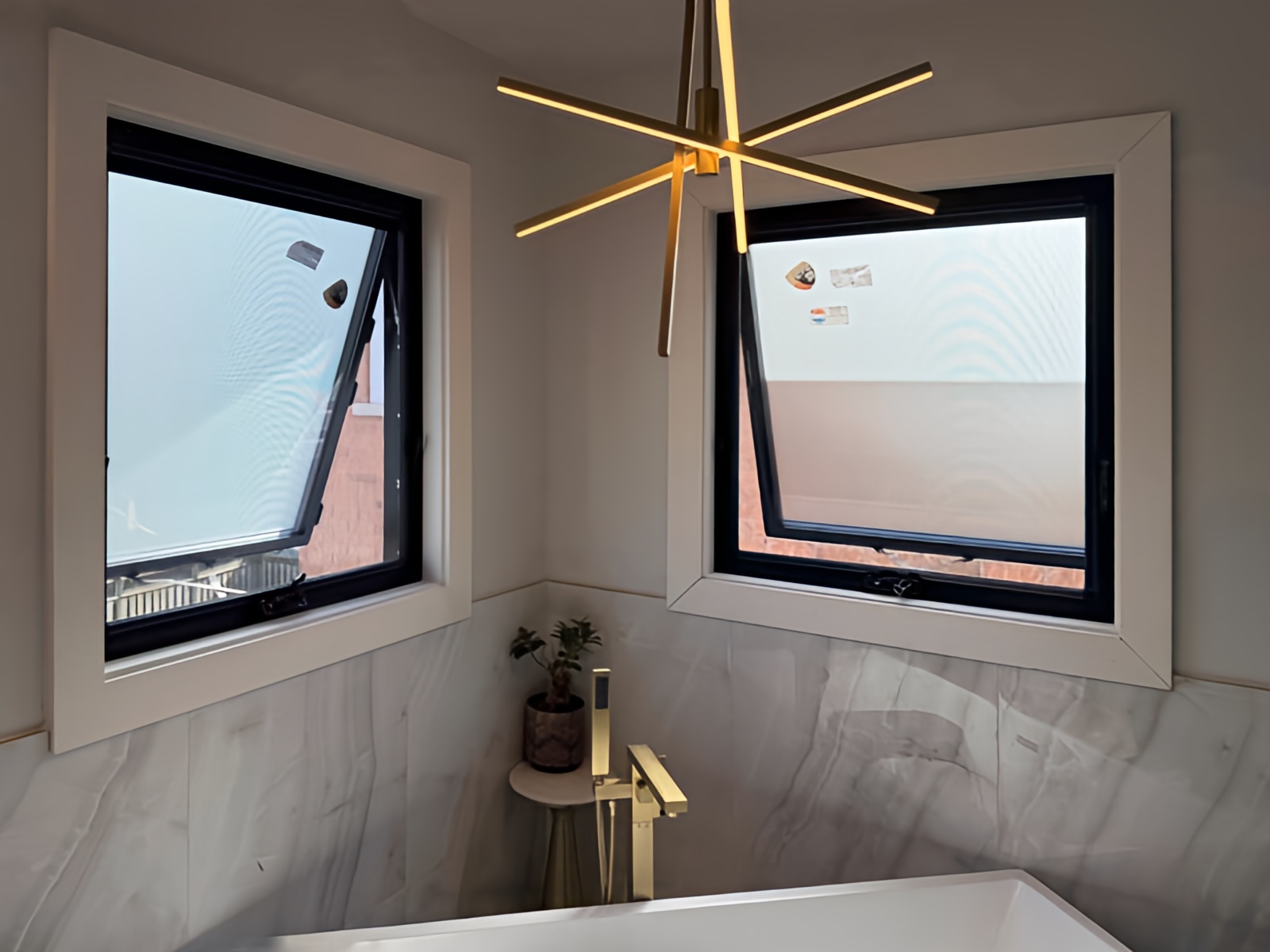

Their compact, space-efficient design makes them especially suitable for kitchen windows, bathrooms, basements, and other areas where ventilation plays a crucial role in keeping your home comfortable year-round in Canada.

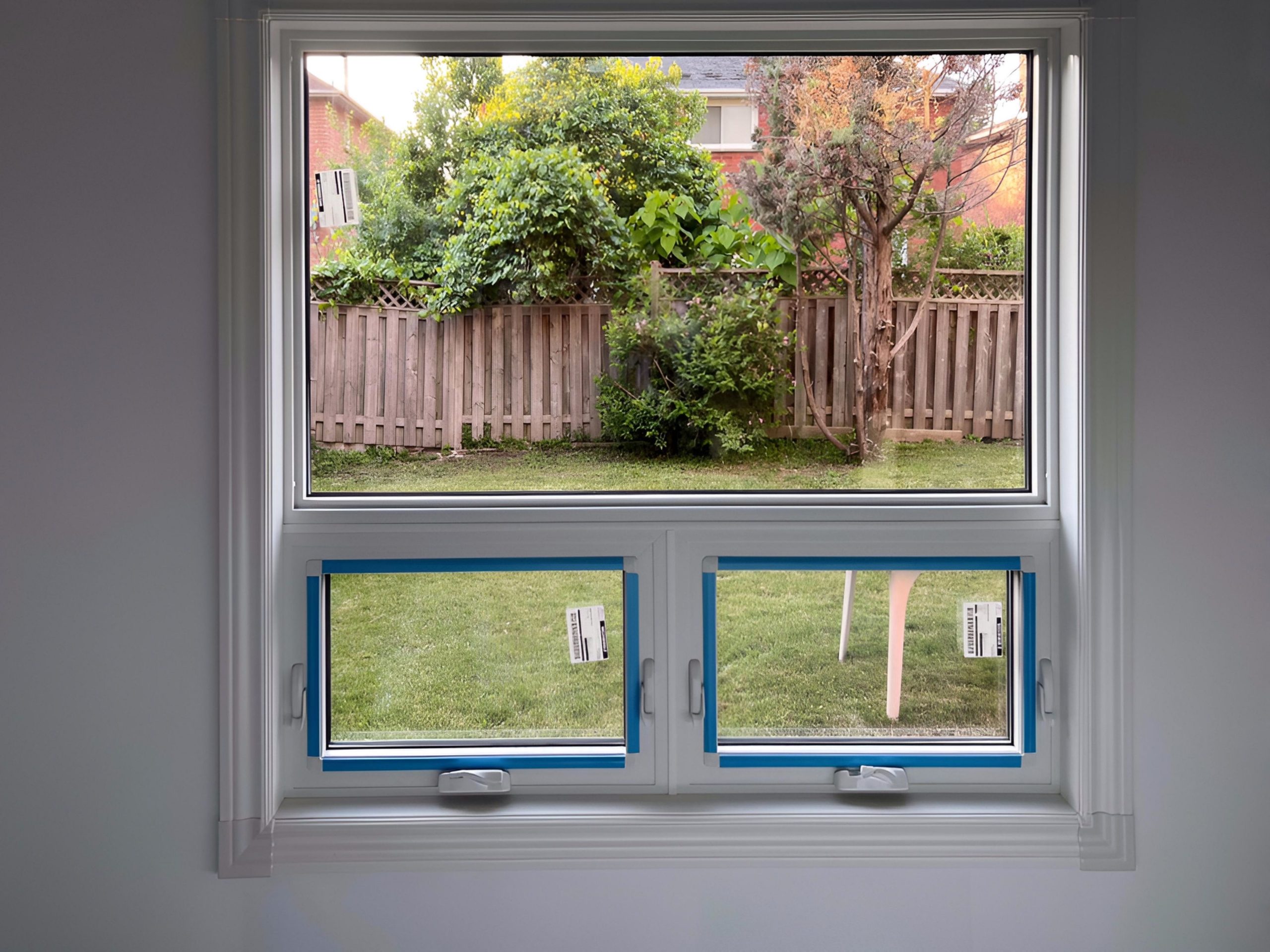

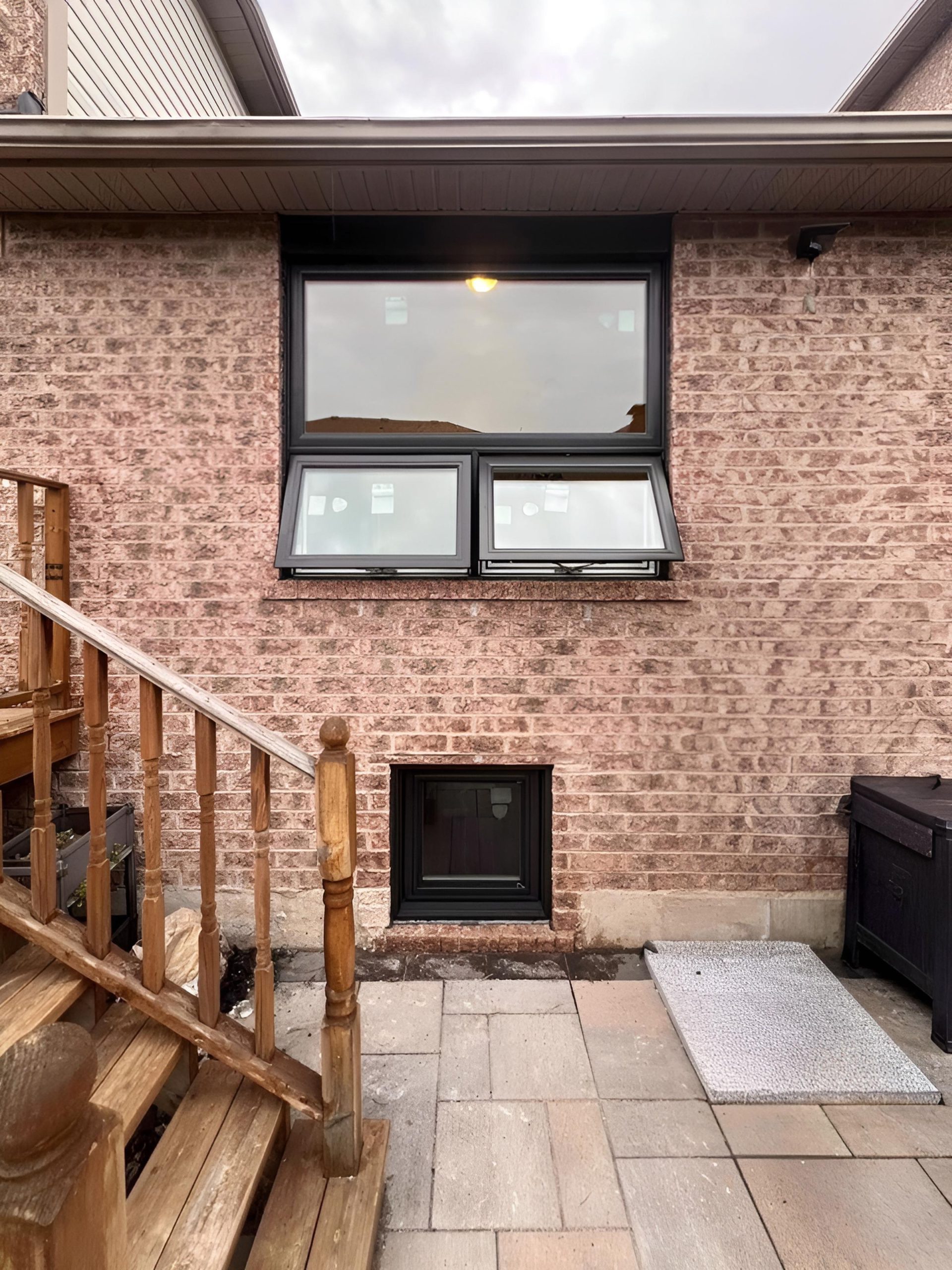

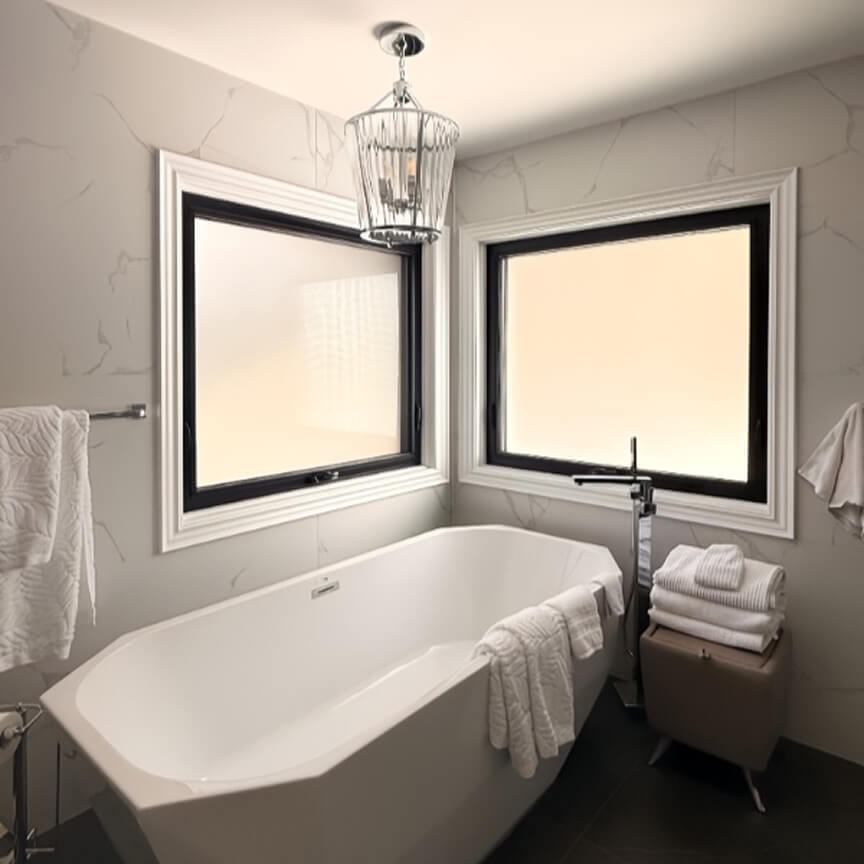

Awning windows fit well in bathrooms, basements, and above larger fixed windows where vertical space is limited.
When closed, the sash compresses evenly against the frame, supporting consistent air and water resistance over time.
The cost of awning replacement windows depends on size, glass configuration, hardware, and installation type. Options such as triple-pane glass and upgraded locking systems may affect pricing. These high-performance replacement windows are designed to improve ventilation and reduce heat transfer in Canadian climates.
| Window Size / Style | Price Range (Installed) | Typical Use |
|---|---|---|
| Small Awning (standard) | $500-900 | Basements, bathrooms |
| Mid-Size Vinyl Awning | $700-1200 | Kitchens, bathrooms, utility rooms |
| Large / Premium | $1200-1800+ | Living areas, paired configurations |
| Custom / High-End Materials | $1600-2400 | Specialty or architectural openings |
Pricing for awning windows depends on window size, glass configuration, installation method, and the type of operating hardware used. Because awning windows open outward and rely on hinges and operators, larger units or triple-pane glass configurations may require reinforced hardware to ensure smooth operation and long-term durability.
Optional upgrades such as custom frame colours, or laminated or tempered glass can also influence the final installation cost.
Two exclusive lines designed for performance, aesthetics, and efficiency.
Proven 3¼″ frame depth designed for reliable performance in retrofit and replacement projects.
Modern minimalist design with an ultra-thin, sleek window frame that maximizes glass area and natural light.
At Total Home Windows and Doors, our casement windows are built using TotalSeal™ Technology, an advanced window system designed for strength, insulation, and long-term performance in Canadian conditions.
Fusion-welded corners form a single solid joint, creating a rigid, leak-resistant frame that helps prevent air and water infiltration over time. A multi-chamber vinyl frame increases structural stability while reducing sound transmission and improving thermal insulation.
Learn how TotalSeal™ Technology is engineered specifically for outward-opening awning windows, ensuring structural stability, balanced compression, and long-term performance in Canadian conditions.
The multi-chamber vinyl frame is engineered for structural stability. Reinforced construction helps prevent twisting or sagging under increased glass weight.
Frame geometry is designed to maintain consistent gasket compression along the entire perimeter. This supports uniform air and water resistance over time.

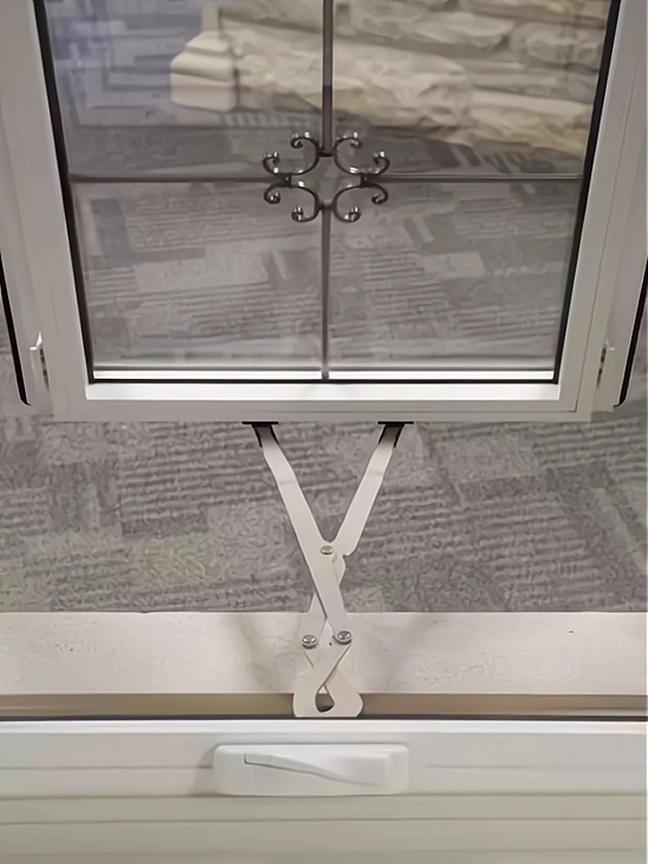

Heavy-duty hinges and precision operators are selected to handle daily use and increased sash weight while preserving smooth operation and durability.
TotalSeal™ Technology is engineered to improve compression balance, structural stability, and long-term sealing performance. In awning windows, this system distributes locking pressure evenly across the sash, helping maintain consistent air and water resistance in Ontario’s changing climate.
Awning windows must support the weight of double- or triple-glazed units while opening from the bottom. The frame and sash are engineered to distribute load evenly, reducing stress on hinges and hardware components over time.
Precision hinges and reinforced operators are selected to handle daily use and increased sash weight while maintaining smooth operation.
Multiple locking points engage the sash along the perimeter, increasing resistance to forced entry while helping pull the sash tightly against the frame for consistent sealing.
Balanced compression and stable frame geometry help minimize air infiltration and support long-term thermal performance across different glazing configurations.
Revolutionary vinyl windows with sleek aluminum aesthetics. Ultra-slim 2 7/8″ profile, advanced multipoint security, and superior energy efficiency for Canadian homes.

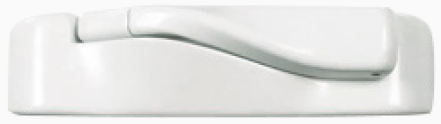

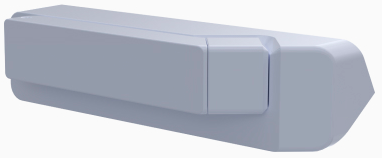

Advanced locking components and hardware systems designed specifically for vinyl awning windows. Because awning windows open outward from the bottom and rely on hinges and operators, their locking systems are engineered to maintain secure closure, smooth operation, and consistent sealing against air infiltration.
Create windows that fit your home perfectly and reflect its unique style. Choose from an extensive array of design, performance, and finishing options to customize the look, comfort, and functionality of your windows.
Energy efficiency and indoor comfort can be enhanced with Low-E coatings and double- or triple-pane glass configurations. These upgrades help reduce heat loss in winter, limit heat gain in summer, and improve insulation. They also help minimize drafts and outside noise, creating a more comfortable living environment year-round while lowering energy costs.
Safety and security can be enhanced with tempered or laminated glass upgrades. Tempered glass is designed to break into small, blunt pieces, reducing the risk of injury if the glass is damaged. Laminated glass remains in place even when cracked, providing additional protection against impact and forced entry. These options add an extra layer of security while maintaining natural light and overall window performance.
Select from between-the-glass grilles for low maintenance, simulated divided lites (SDL) for a classic look, or TruLite premium divided glass for a true architectural pane appearance.
Interior jambs and casing define the finished look of your window from inside the home. Choose between wood and vinyl trim packages to match your interior style and wall construction.
Wood Package: Jamb extensions and a wide selection of casing styles, available in primed wood or stainable solid wood.
Vinyl Package: Vinyl or solid vinyl jamb extensions with Colonial, Flat, or Modern casing profiles, including decorative rosettes.
Exterior trim completes the outside appearance of your window and creates a clean transition between the frame and the surrounding wall.
Brickmould profiles are available in multiple styles to complement brick, siding, or stucco exteriors. Built for durability and long-term weather resistance in Canadian conditions.
Our ENERGY STAR® certified awning windows provide strong energy efficiency thanks to their compression sealing design. When closed, the sash presses firmly against the frame, helping reduce air leakage and improve thermal insulation. This construction allows vinyl awning windows to deliver consistent energy performance in both double-pane and triple-pane configurations.
| Traditional | Energy Rating | U - Factor | SHGC | Efficient |
|---|---|---|---|---|
| Double pane | 36 | 1.25 | 0.39 | no |
| Triple pane | 41 | 0.9 | 0.36 | yes |
Our triple-pane windows offer superior insulation, featuring multiple layers of protection for maximum energy efficiency and sound reduction.
Choose between 13/16″ or 1/8″ double-pane options, offering excellent
thermal performance and noise reduction at a competitive price.
Our advanced Low-E coated windows reflect harmful UV rays while maintaining optimal indoor temperature, protecting your furniture from fading.
These windows, featuring sealed units filled with argon gas, provide superior insulation and energy efficiency in extreme weather conditions.
Awning window size limitations depend on glazing type, glass thickness, hinge capacity, and structural performance requirements. Because awning windows open outward from the bottom and are supported by hinges and operators, their dimensions must remain within specific limits to ensure smooth operation, proper sealing, and long-term durability. The table below outlines typical minimum and maximum sizes for vinyl awning windows.
| Glass Type | Min. Width | Min. Height | Max. Width | Max. Height | Max Sq. Ft. |
|---|---|---|---|---|---|
| Double Pane | 14.5" | 14" | 50" | 60" | 17 sq. ft. |
| Triple Pane | 14.5" | 14" | 50" | 60" | 16 sq.ft. |
Windows can be installed using different methods depending on existing conditions and project scope.
Brick-to-brick installation entails the complete removal of old windows and frames, including surrounding brickwork, followed by the installation of new windows in freshly created openings. This method offers greater flexibility in window size and placement, allowing for customized designs to suit specific
preferences. However, the process is more labour-intensive and time-consuming, as it involves additional construction work to accommodate the new openings.
Stud-to-stud installation involves removing the existing window, frame, and interior finishes down to the wall studs before installing a new window into the structural opening. It allows installers to properly inspect insulation, moisture protection, and to achieve consistent air sealing around the entire window. In some cases, it may be performed using a split-frame method, where portions of the existing frame are removed to provide structural access while minimizing interior disruption.
Retrofit installation involves fitting new windows into the existing window frames without altering the surrounding structure. This method is characterized by its simplicity and efficiency, as it avoids the need for extensive structural modifications. Since it utilizes the existing framework, retrofit installation is generally easier to complete compared to brick-to-brick installation. Moreover, it often proves to be more cost-effective due to reduced labour and material requirements.
We’ve developed a streamlined installation process that ensures quality results while minimizing disruption to your daily routine. Here’s how we transform your home with new windows.
Our window experts visit your home to assess your needs, measure spaces, and discuss your preferences. We’ll present suitable window styles, including awning and casement options, and provide detailed cost estimates.
We create a tailored installation plan based on your choices, considering factors like wall structure and interior access. Our team schedules the installation at your convenience and orders your custom windows.
Our experienced installers arrive on schedule, protect your property, and efficiently remove old windows. They carefully install your new windows using industry-best practices and our TotalSeal system.
We conduct thorough quality checks, ensuring proper operation and sealing. Our team demonstrates how to operate your new windows, provides maintenance tips, and completes a final work area cleanup.
Need help?
Unlike other window styles, awning windows are hinged at the top and open outward using a smooth crank mechanism. Their unique design provides excellent ventilation while protecting the interior from rain and the elements.
Awning windows are popular for their versatility, ease of operation, and ability to provide fresh air even during light rain. They’re particularly popular in combination with picture windows and in rooms where ventilation is crucial.
Most awning windows can fully open up to 45 degrees outward, creating ample space for ventilation. The crank mechanism allows precise control over the opening angle to suit your comfort needs.
Yes! Awning windows work beautifully with other types, especially casement and picture windows. To create architectural interest, many homeowners install them above larger windows or in groups.
Awning windows are ideal for bathrooms, kitchens, and basements where fresh air is essential but privacy is needed. They’re also perfect for rooms where furniture placement might restrict access to traditional window styles.
Maintenance is straightforward: regularly clean the glass, lubricate the crank mechanism, and check the weather stripping. Most modern awning windows feature easily cleaned surfaces and durable components designed for long-term performance.
Yes, when properly installed, awning windows provide excellent energy efficiency. Their design creates a tight seal when closed, preventing drafts and helping keep your home comfortable in all seasons.
In most cases, yes. During a consultation, our experts will assess your space to determine whether awning windows suit your replacement project. They’ll consider wall space, ventilation needs, and architectural style.
We offer awning windows in various materials, including vinyl, aluminum, wood, and composites. Each option provides different durability, maintenance, and aesthetic benefits to suit your needs.
Awning windows are highly secure, featuring multi-point locking systems and robust hardware. Their design and operation mechanism makes them one of the most secure window styles.
Since our establishment in 2007, Total Home Windows & Doors has grown from a small Toronto-based company into a leading window installation expert serving the entire Greater Toronto Area. Our success stems from our unique approach – partnering with local installation experts who understand the distinct characteristics of Toronto homes.
Starting in Toronto and expanding to Mississauga and Oakville, we’ve maintained our commitment to excellence through local expertise and superior craftsmanship. Our team’s deep understanding of regional architecture ensures perfect installations for every project.
Our exclusive TotalSeal technology features an innovative integrated lock point system positioned 3" from the corner, reinforcing traditionally weak points. This advanced system provides superior security, prevents air infiltration, and ensures optimal performance in extreme Canadian weather conditions.
Our installation specialists are carefully selected local experts who understand the unique architectural challenges of GTA homes. With years of experience in window replacement and new construction projects, they ensure flawless installation every time.
We offer an extensive range of window styles, including awning, casement, and picture windows, with various glass options and treatments. Our selection ensures you'll find the perfect windows to match your home's architecture and personal preferences.
Our dedicated team provides personalized attention throughout your project, from initial consultation to final installation. We maintain clear communication, respect your property, and ensure complete satisfaction with every installation.
Vice President of Sales
Vice President of Sales
With over a decade of experience in the industry, we have honed our craft to deliver exceptional products and services. Our team's expertise ensures that every installation is executed with precision, resulting in windows and doors that perform flawlessly and enhance the overall comfort of your home.
We stand behind our products and workmanship with industry-leading warranties. Our lifetime warranty covers manufacturing defects, hardware issues, and installation workmanship. If any problems arise, we’ll fix them promptly at no cost to you.
Our warranty includes free service calls, replacement parts, and labour for covered issues. All warranties are transferable to new homeowners, adding value to your property investment.
Experience the difference that premium windows and expert installation can make in your home’s comfort, security, and energy efficiency.
