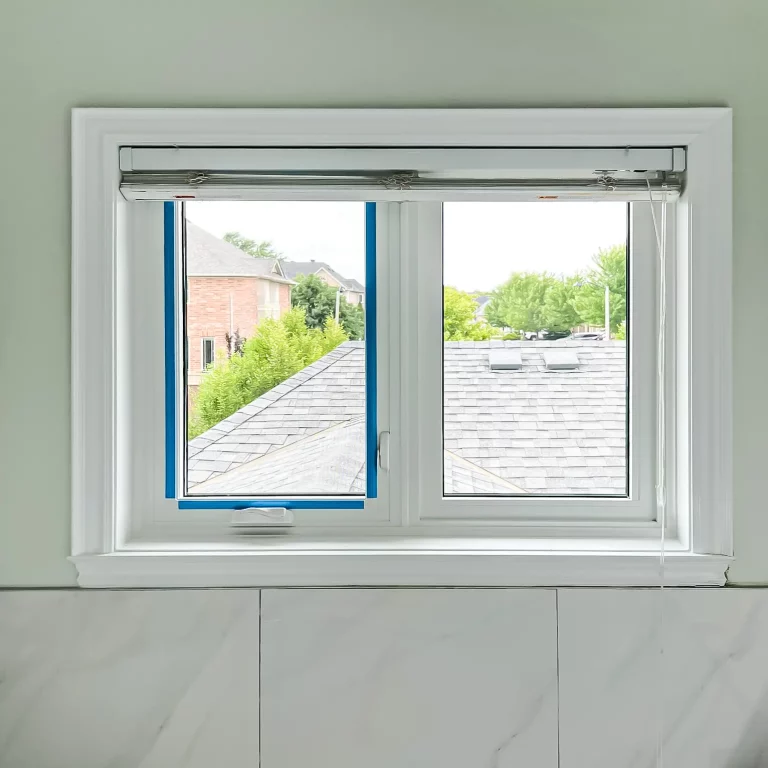

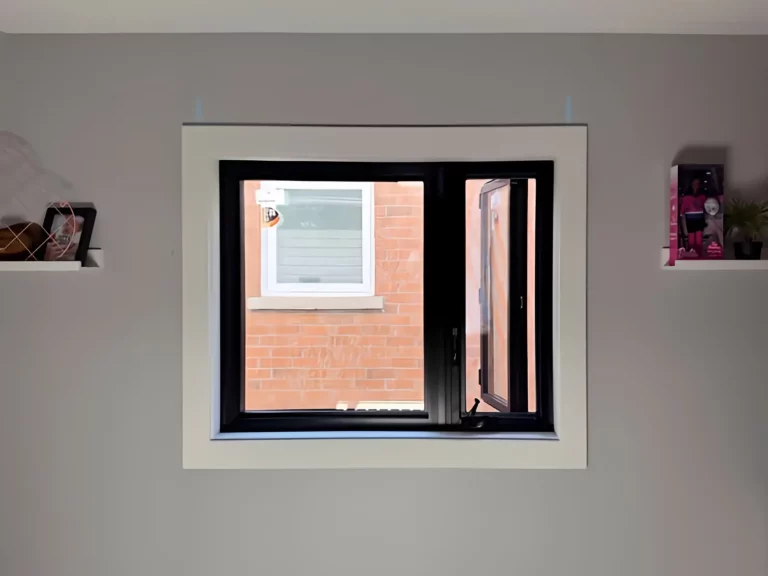

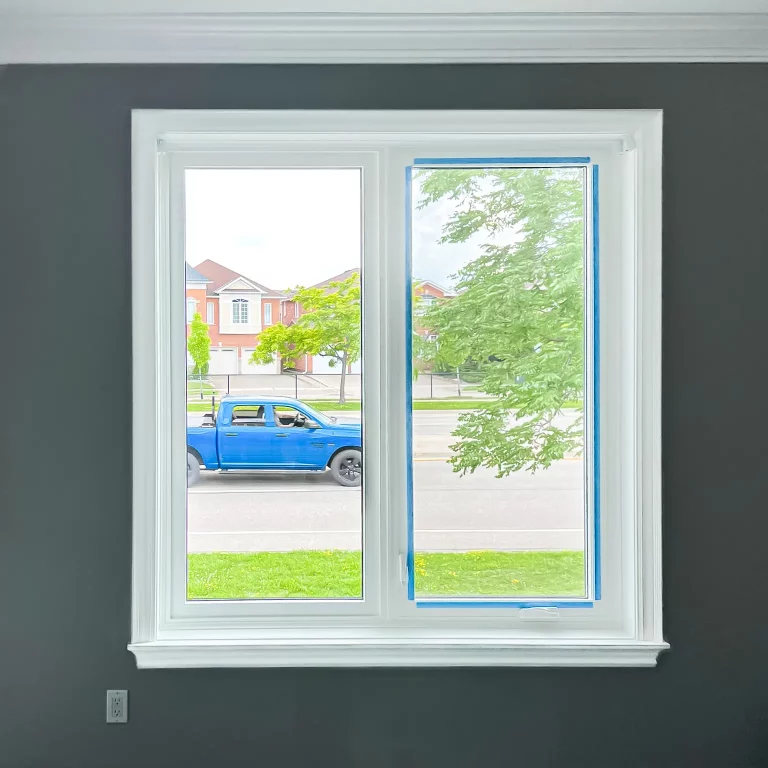

Casement windows are hinged on one side and open outward using a crank handle. This design allows the window to open fully, providing excellent airflow and wide, unobstructed views.
One of the key advantages of casement windows is their compression seal design. When closed, the sash is pulled tightly against the frame, helping block drafts, moisture, and outside noise. This makes casement windows especially effective in climates with cold winters, wind, and frequent temperature changes.
Casement windows remain a popular choice for homeowners in Southern Ontario, who value comfort, efficiency, and low-maintenance performance over time. They’re especially well-suited if:
Because the window opens fully, casement windows catch even a refreshing breeze more effectively than sliding or fixed windows.
Casement windows typically open to 90°, allowing you to clean the exterior glass from inside your home safely.
Their side-hinged design makes vinyl casement windows easy to operate in tight spaces such as above sinks, counters, or furniture.
The cost of casement windows depends on window size, glass configuration, hardware selection, and installation type. Below is a general price range to help you understand how costs are typically structured. Final pricing is always confirmed during a free in-home consultation.
| Window Size / Style | Price Range (Installed) | Typical Use |
|---|---|---|
| Small Casement (standard) | $400-900 | Basements, small rooms |
| Mid-Size Vinyl Casement | $700-1200 | Bedrooms, kitchens |
| Large / Premium | $1200-1800+ | Living rooms, custom openings |
| Custom / High-End Materials | $1500-2200 | Specialty sizes, wood or fiberglass |
Pricing varies based on window size, glass configuration, installation method (retrofit or full-frame), and structural conditions. Larger or triple-pane units may require reinforced hardware or heavy-duty operators.
Upgrades such as custom colours, laminated or tempered glass, interior trim selections, and brickmould profiles can also influence the overall project cost.
Two exclusive lines designed for performance, aesthetics, and efficiency.
Proven 3¼″ frame depth designed for reliable performance in retrofit and replacement projects.
Modern minimalist design with an ultra-thin, sleek window frame that maximizes glass area and natural light.
At Total Home Windows and Doors, our casement windows are built using TotalSeal™ Technology, an advanced window system designed for strength, insulation, and long-term performance in Canadian conditions.
Fusion-welded corners form a single solid joint, creating a rigid, leak-resistant frame that helps prevent air and water infiltration over time. A multi-chamber vinyl frame increases structural stability while reducing sound transmission and improving thermal insulation.
Learn how the TotalSeal™ Technology is applied specifically to casement windows, which open outward and place unique demands on the frame and sash. Casement windows require precise geometry and reinforced construction to support side-hinged operation while maintaining a tight seal when closed.
The frame is engineered to remain stable under the loads created by outward-opening sashes, helping prevent twisting, sagging, or long-term misalignment.
The operable sash is reinforced to support the weight of double- or triple-glazed insulating glass units without compromising smooth and easy operation.
Frame geometry is designed to maintain consistent compression of the weather seals around the entire perimeter of the window. This helps ensure uniform sealing pressure,
The frame and sash are engineered to properly support both double- and triple-pane glass configurations while maintaining performance and durability.
The hinge side is reinforced to handle the weight of outward-opening casement windows, helping prevent sagging and ensuring long-term smooth operation.
Encore operators are designed to handle increased sash weight and frequent daily use while protecting internal components from debris.
Casement windows rely on precise locking to maintain even pressure and a consistent seal around the entire frame. The TotalSeal Multi-Point Locking System is engineered to adapt to different window sizes and glass configurations, distributing locking force where it is needed most. This approach improves air and water performance, supports long-term durability, and enhances overall security in side-hinged, outward-opening windows.
As casement windows increase in width – typically around 32-36 inches – achieving even compression along the sash becomes more challenging. The integrated corner drive extends locking force to the upper corner of the window, helping maintain a tighter, more consistent seal across the entire frame. This improves air and water performance, especially on larger casement configurations.
For triple-pane and security glass configurations, where sash weight is significantly higher, the corner drive plays a critical structural role. Supporting the sash at the upper corner helps distribute the load more evenly, reduces stress on hinges and operator mechanisms, and minimizes the risk of sash sagging over time.
The heavy-duty operator is available for wide casement windows, triple-glazed units, and security or laminated glass. It is designed to handle increased sash weight, ensuring smooth operation while reducing long-term stress on hardware components.
Multiple locking points engage the sash along the perimeter, increasing resistance to forced entry and making it more difficult to disengage the window from the frame. At the same time, this distributed locking action helps pull the sash tightly against the frame, supporting consistent sealing and long-term stability.
Revolutionary vinyl windows with sleek aluminum aesthetics. Ultra-slim 2 7/8″ profile, advanced multipoint security, and superior energy efficiency for Canadian homes.
Advanced locking components and hardware systems designed to keep your vinyl casement windows secured, easy to operate, and resistant to air infiltration.
Create windows that fits your home perfectly and reflects its unique style. Choose from an extensive array of design, performance, and finishing options to customize the look, comfort, and functionality of your windows.
Energy efficiency and indoor comfort can be enhanced with Low-E coatings and double- or triple-pane glass configurations. These upgrades help reduce heat loss in winter, limit heat gain in summer, and improve insulation. They also help minimize drafts and outside noise, creating a more comfortable living environment year-round while lowering energy costs.
Safety and security can be enhanced with tempered or laminated glass upgrades. Tempered glass is designed to break into small, blunt pieces, reducing the risk of injury if the glass is damaged. Laminated glass remains in place even when cracked, providing additional protection against impact and forced entry. These options add an extra layer of security while maintaining natural light and overall window performance.
Select from between-the-glass grilles for low maintenance, simulated divided lites (SDL) for a classic look, or TruLite premium divided glass for a true architectural pane appearance.
Interior jambs and casing define the finished look of your window from inside the home. Choose between wood and vinyl trim packages to match your interior style and wall construction.
Wood Package: Jamb extensions and a wide selection of casing styles, available in primed wood or stainable solid wood.
Vinyl Package: Vinyl or solid vinyl jamb extensions with Colonial, Flat, or Modern casing profiles, including decorative rosettes.
Exterior trim completes the outside appearance of your window and creates a clean transition between the frame and the surrounding wall.
Brickmould profiles are available in multiple styles to complement brick, siding, or stucco exteriors. Built for durability and long-term weather resistance in Canadian conditions.
Our ENERGY STAR® certified windows represent the pinnacle of energy efficiency. They help homeowners reduce utility bills while maintaining optimal indoor comfort throughout all seasons.
| Traditional | Energy Rating | U - Factor | SHGC | Efficient |
|---|---|---|---|---|
| Double pane | 36 | 1.25 | 0.44 | no |
| Triple pane | 42 | 0.85 | 0.36 | yes |
Our triple-pane windows offer superior insulation, featuring multiple layers of protection for maximum energy efficiency and sound reduction.
Choose between 13/16″ or 1/8″ double-pane options, offering excellent
thermal performance and noise reduction at a competitive price.
Our advanced Low-E coated windows reflect harmful UV rays while maintaining optimal indoor temperature, protecting your furniture from fading.
These windows, featuring sealed units filled with argon gas, provide superior insulation and energy efficiency in extreme weather conditions.
Engineered to Canadian performance and safety standards
NFRC-rated performance data available
Laminated safety glass options for enhanced security
ENERGY STAR® Canada qualified options
Casement window size limitations depend on glazing type, glass thickness, and structural requirements. The table below outlines standard minimum and maximum dimensions for casement windows with double- and triple-pane glass, ensuring proper operation, long-term performance, and structural integrity.
| Glass Type | Min. Width | Min. Height | Max. Width | Max. Height | Max Sq. Ft. |
|---|---|---|---|---|---|
| Double Pane | 15.5" | 18" | 38" | 72" | 17 sq. ft. |
| Triple Pane | 15.5" | 18" | 36" | 64" | 14.5 sq.ft. |
Windows can be installed using different methods depending on existing conditions and project scope.
Brick-to-brick installation entails the complete removal of old windows and frames, including surrounding brickwork, followed by the installation of new windows in freshly created openings. This method offers greater flexibility in window size and placement, allowing for customized designs to suit specific preferences. However, the process is more labour-intensive and time-consuming, as it involves additional construction work to accommodate the new openings.
Stud-to-stud installation involves removing the existing window, frame, and interior finishes down to the wall studs before installing a new window into the structural opening. It allows installers to properly inspect insulation, moisture protection, and to achieve consistent air sealing around the window. In some cases, it may be performed using a split-frame method, where portions of the existing frame are removed to provide structural access while minimizing interior disruption.
Retrofit installation involves fitting new windows into the existing window frames without altering the surrounding structure. This method is characterized by its simplicity and efficiency, as it avoids the need for extensive structural modifications. Since it utilizes the existing framework, retrofit installation is generally easier to complete compared to brick-to-brick installation. Moreover, it often proves to be more cost-effective due to reduced labour and material requirements.
We’ve developed a streamlined, customer-focused approach to
window replacement that ensures quality results and complete
satisfaction. Here’s how we transform your home:
Our consultant visits your home to understand your needs, style preferences, and budget. Together, you review window types, configurations and glass options to find the best solution for your space.
After the initial consultation, a dedicated production measurer visits your home. They take detailed technical measurements of every opening and confirm the proper installation method. These precise measurements are used to custom-build your windows to exact specifications.
Your windows are custom-manufactured for your home based on precise production measurements. Once ready, your lead installer and installation team complete the project with exact alignment, proper insulation, sealing, and interior and exterior finishing to ensure long-term performance.
We thoroughly test all installed windows, checking hardware operation, weather sealing, and security features. Our team demonstrates proper window operation and maintenance procedures before finalizing the project. The installation team disposes of all debris and old materials, leaving your home clean and ready to enjoy.
Casement windows are hinged on one side (left or right) and open outward using a crank mechanism. The folding handle allows for smooth operation, and windows can open to 90 degrees for maximum ventilation and easy cleaning access.
Casement windows are perfect for kitchen installations, significantly above sinks. Their crank mechanism makes them easy to operate even in hard-to-reach places. When closed, they provide excellent ventilation and unobstructed views while offering enhanced security.
Our casement windows feature the Total Seal multi-point locking system, making them highly secure. When closed, multiple locking points along the frame create an airtight seal that’s highly resistant to forced entry.
Yes, casement windows can be beautifully incorporated into bay window designs. We typically combine fixed centre panels with operational casement windows on the sides for optimal functionality and fresh air flow.
Our casement windows feature hinges that allow them to open fully, providing easy access to both sides of the glass for cleaning. The crank operation makes it simple to position the window at any angle for safe and effective cleaning.
We offer single and double casement windows in various sizes and configurations. Options include different frame materials (vinyl, aluminum, wood), glass packages, and hardware finishes to match your interior and exterior design preferences.
Our casement window hardware and hinges are engineered to withstand strong winds. When closed, the multi-point locking system creates a tight seal that prevents drafts and ensures superior performance in challenging weather conditions.
While initial costs may be slightly higher than basic window styles, casement windows offer excellent value through superior energy efficiency, enhanced security, and durability. They’re a worthwhile investment for long-term performance and comfort.
While both use crank mechanisms, casement windows are hinged on the side and open horizontally, while awning windows are hinged at the top and open outward from the bottom. Casement windows typically offer larger ventilation openings.
Most standard casement window replacements can be completed within a day. However, the timeline depends on the number of windows, accessibility, and whether any structural modifications are needed.
At Total Home Windows and Doors, we’ve built our reputation on delivering exceptional quality and innovative solutions to homeowners across the GTA. Our revolutionary TotalSeal technology embodies our commitment to excellence, transforming the window industry’s approach to security and energy efficiency.
With decades of experience as a leading manufacturer, we understand the unique challenges posed by Canada’s climate and provide tailored solutions that combine durability, functionality, and aesthetic appeal. Our team of skilled professionals takes pride in every project, ensuring your complete satisfaction from consultation to installation.
Our exclusive TotalSeal technology provides unmatched security and insulation. With integrated corner drives positioned 3 inches from window corners and multi-point locking mechanisms, your windows remain secure and energy-efficient in all weather conditions.
Our certified installers bring decades of combined experience to every project. As a good contractor, we ensure precise installation of all window styles, from casement windows to basement windows, maintaining the highest industry standards.
Our windows use only top-grade materials, including superior vinyl and aluminum frames. Each component, from the folding handle to the insect screens, is carefully selected for durability and performance.
Experience exceptional service from start to finish. Our team assists with everything from choosing the perfect window style to post-installation maintenance, ensuring your complete satisfaction at every step.
