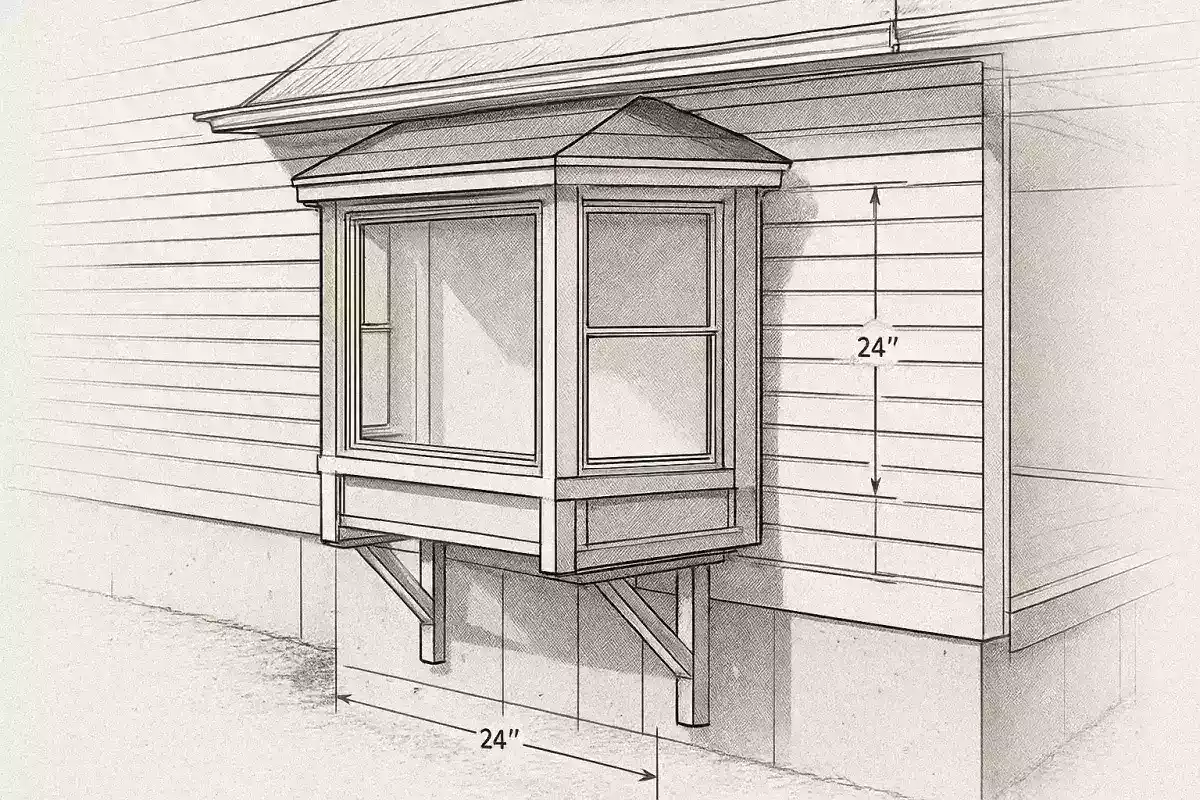

Bay windows typically project 18 to 24 inches from the exterior wall, though some designs can extend up to 30 inches or more depending on structural support and local building codes. The exact projection distance depends on your home’s structural capacity, foundation requirements, and municipal regulations that vary across Canadian provinces.
Understanding bay window projection limits is crucial for Canadian homeowners considering this architectural enhancement. These beautiful windows not only add visual appeal and natural light but also create additional interior space. However, their installation requires careful consideration of structural engineering, building codes, and neighbourhood regulations to ensure safety and compliance.
Window and Doors Replacement Near Me
What is bay window projection?
Bay window projection refers to the distance a bay window extends outward from your home’s exterior wall. Unlike traditional windows that sit flush with the wall surface, bay windows create a three-dimensional extension that juts out from the building envelope.
This projection creates what’s essentially a small room addition without the need for a full foundation extension. The window unit typically consists of three panels – a large centre window flanked by two angled side windows, usually set at 30 or 45-degree angles.
Most bay windows project between 18 and 24 inches, but custom installations can extend further depending on your specific needs and structural limitations. The projection depth directly impacts both the interior space gained and the structural requirements needed to support the window safely.
Why does projection distance matter?
The projection distance of your bay window affects multiple aspects of your home renovation project. Understanding these implications helps you make informed decisions about your window installation.
Structural integrity becomes increasingly important as projection distance increases. Longer projections require more robust support systems, including adequate framing, proper foundation support, and sometimes additional structural reinforcement of the existing wall.
Building code compliance varies significantly based on projection distance. Many Canadian municipalities have specific regulations about how far windows can extend from the building envelope, particularly in urban areas where setback requirements and neighbour considerations come into play.
“In my experience, homeowners often want the maximum projection possible, but we always start with a structural assessment to determine what’s actually feasible for their specific home,” says Vitaly Shapiro, Vice President of Sales.
Structural support requirements
Bay window structural support is fundamentally different from standard window installation. The projection creates a cantilever effect that places unique stresses on your home’s framing system.
The support system typically includes several key components:
- Header reinforcement: Additional structural framing above the window opening to distribute weight loads
- Knee braces or corbels: Angled supports that transfer the window’s weight to the foundation or main structure
- Foundation extensions: Concrete footings or piers that provide ground-level support for larger projections
- Roof integration: Proper flashing and weatherproofing where the bay window roof meets the main house
The engineering requirements become more complex as projection distance increases. Windows extending beyond 24 inches typically require professional structural engineering assessment to ensure the existing framing can handle the additional loads.
| Projection Distance | Support Requirements | Foundation Needs |
|---|---|---|
| 18-20 inches | Standard knee braces | Existing foundation usually sufficient |
| 21-24 inches | Reinforced framing + corbels | May require foundation extension |
| 25+ inches | Engineering assessment required | Dedicated foundation support needed |
Find the Best Window Styles for your Home
Building code considerations across Canada
Canadian building codes provide the framework for bay window installations, but specific requirements vary by province and municipality. The National Building Code of Canada serves as the baseline, while local authorities may impose additional restrictions.
Most provinces follow similar guidelines for residential bay window projections. Generally, projections up to 24 inches are considered standard residential installations, while larger projections may require special permits or engineering approval.
Key code considerations include:
- Setback requirements: Distance from property lines and neighbouring structures
- Structural load calculations: Ensuring adequate support for snow loads and wind resistance
- Energy efficiency standards: Meeting provincial energy codes and ENERGY STAR™ certification requirements
- Fire safety clearances: Maintaining proper distances from potential ignition sources
- Accessibility compliance: Ensuring installations don’t create barriers or hazards
Ontario’s building code, for example, typically allows bay window projections up to 600mm (approximately 24 inches) without special structural considerations, provided proper support is installed. British Columbia has similar guidelines but may have additional seismic considerations in certain regions.
“We always check with local building departments before finalising bay window designs because code interpretations can vary even between neighbouring municipalities,” explains Eugene Siukayev, Project Manager.
Foundation and support options
The foundation requirements for your bay window depend heavily on the projection distance and your home’s existing structure. Understanding your options helps you plan both the installation process and budget requirements.
For shorter projections (18-20 inches), existing foundation walls often provide adequate support when combined with proper knee braces or corbel systems. These support methods transfer the window’s weight to the existing structural elements without requiring foundation modifications.
Medium projections (21-24 inches) frequently require foundation extensions or dedicated pier systems. These additions ensure the bay window has adequate support while maintaining structural integrity. The foundation work typically involves excavation, concrete pouring, and waterproofing to match existing foundation standards.
Larger projections (25+ inches) almost always require dedicated foundation support systems. These installations often resemble small room additions and may require full architectural and engineering drawings for permit approval.
| Support Type | Best For | Installation Complexity | Typical Cost Range |
|---|---|---|---|
| Knee braces | 18-20 inch projections | Moderate | $500-$1,200 |
| Foundation extension | 21-24 inch projections | High | $2,000-$4,000 |
| Pier system | 25+ inch projections | Very high | $3,000-$6,000 |
Getting started with bay window planning
Planning your bay window installation requires careful assessment of multiple factors before making final decisions. Start by evaluating your home’s structural capacity and local regulatory requirements.
Begin with a professional structural assessment of your existing wall and foundation systems. This evaluation determines the maximum safe projection distance for your specific home and identifies any necessary reinforcement requirements.
Research local building codes and permit requirements early in the planning process. Contact your municipal building department to understand specific regulations, setback requirements, and permit fees that apply to your project.
Consider the interior space goals for your bay window project. Determine whether you need maximum projection for a reading nook or window seat, or if a smaller projection would meet your natural light and aesthetic goals while simplifying installation requirements.
Work with experienced window professionals who understand both the technical and regulatory aspects of bay window installation. Proper bay window installation requires expertise in structural engineering, weatherproofing, and code compliance.
Common mistakes to avoid
Bay window installations can encounter several pitfalls that lead to structural problems, code violations, or performance issues. Learning from common mistakes helps ensure your project succeeds from the start.
Underestimating structural requirements is perhaps the most serious error. Many homeowners assume bay windows are simple window replacements, but they actually require significant structural modifications and support systems.
Ignoring building permits and code requirements creates legal and safety risks. Some homeowners attempt DIY installations or hire unlicensed contractors to avoid permit costs, but this approach often results in expensive corrections and potential liability issues.
Common planning mistakes include:
- Insufficient foundation assessment: Failing to evaluate existing foundation capacity before determining projection distance
- Poor weatherproofing planning: Inadequate attention to water infiltration prevention and thermal bridging
- Unrealistic projection goals: Wanting maximum projection without considering structural or code limitations
- Budget underestimation: Not accounting for structural work, permits, and potential complications
Professional installation ensures proper structural integration, weatherproofing, and code compliance. Working with experienced window installers helps avoid these common pitfalls while ensuring your bay window performs properly for decades.
Resources for further learning
Understanding bay window projection requirements benefits from accessing reliable technical and regulatory resources. These information sources help you make informed decisions and plan successful installations.
Start with your local building department’s website and published guidelines. Most Canadian municipalities provide detailed information about residential renovation requirements, permit processes, and code interpretations specific to your area.
The National Research Council Canada maintains comprehensive building code resources and technical guides. Their publications include structural requirements, energy efficiency standards, and installation best practices for various window types.
Professional associations like the Canadian Window and Door Manufacturers Association (CWDMA) provide technical standards and installation guidelines. These resources ensure your project meets industry standards for performance and durability.
Consider consulting with structural engineers or architects for complex installations. Professional guidance becomes essential for larger projections, older homes, or situations involving significant structural modifications.
Making the right choice for your home
Bay window projection distance ultimately depends on balancing your space goals with structural realities and regulatory requirements. The sweet spot for most Canadian homes falls between 18 and 24 inches, providing meaningful interior space enhancement while maintaining reasonable installation complexity.
Remember that projection distance affects not only installation costs but also long-term performance and maintenance requirements. Longer projections create more complex weatherproofing challenges and may require more frequent maintenance attention.
Energy efficiency considerations also play a role in projection planning. ENERGY STAR™ certified windows help maintain thermal performance regardless of projection distance, but larger projections create more exterior surface area that affects overall energy efficiency.
The most successful bay window projects start with realistic goals, professional assessment, and quality installation. Whether you choose a modest 18-inch projection or a dramatic 30-inch extension, proper planning and execution ensure your bay window enhances both your home’s beauty and functionality for years to come.
FAQ
How much weight can a bay window projection support?
Bay windows typically support 40-60 pounds per square foot when properly installed with adequate structural support. The exact capacity depends on framing materials, foundation support, and projection distance.
Do I need a building permit for bay window installation?
Most Canadian municipalities require building permits for bay window installations because they involve structural modifications. Check with your local building department for specific requirements and fees.
Can bay windows be installed on second-floor walls?
Second-floor bay windows are possible but require more complex structural engineering and support systems. Professional assessment is essential to ensure adequate load distribution and safety compliance.
What’s the minimum projection distance for a functional bay window?
Functional bay windows typically require at least 12-15 inches of projection to create usable interior space. Smaller projections primarily provide aesthetic benefits rather than practical space enhancement.
How do bay window projections affect property taxes?
Bay windows may increase property assessments since they add square footage and home value. The tax impact varies by municipality, but most bay windows add modest value increases.
