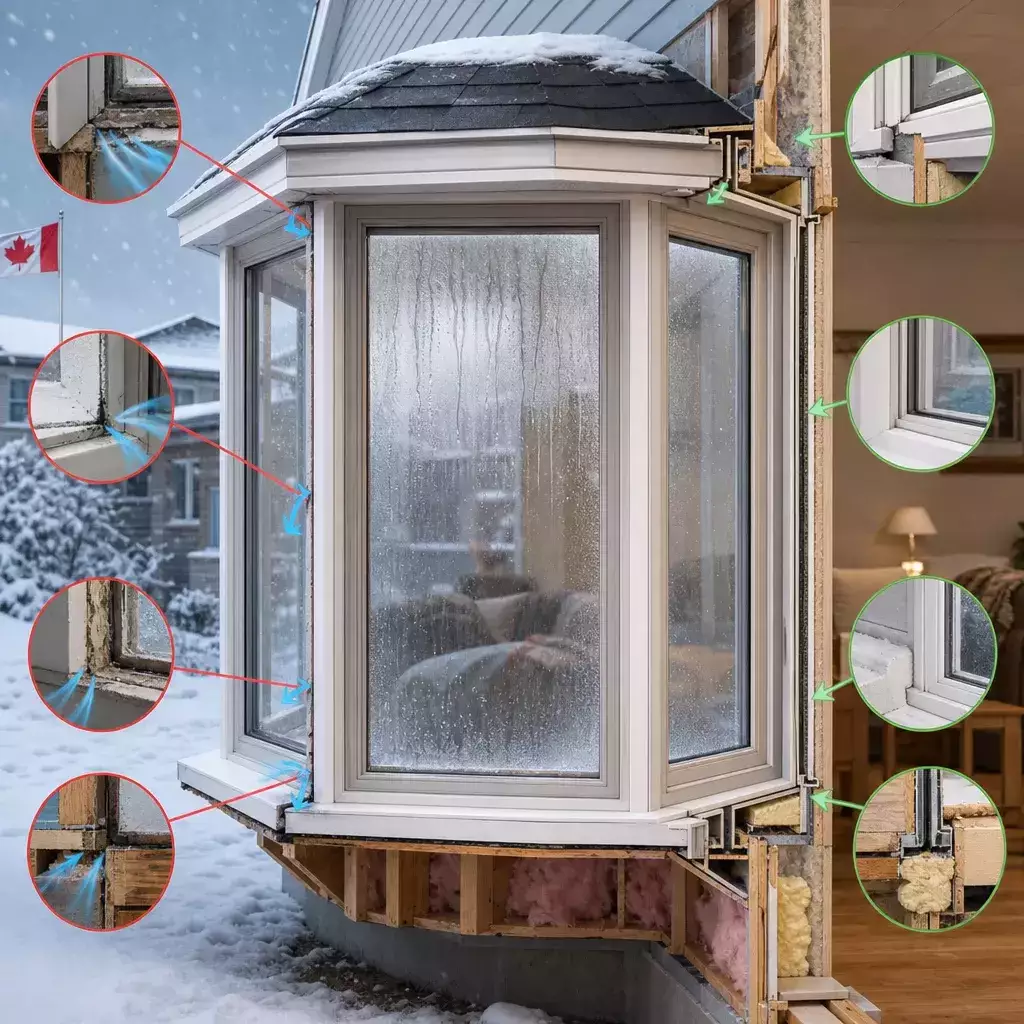

How to Stop Draft From a Bay Window

Drafty bay windows lose heat through gaps in weatherstripping, improper sealing, or outdated glazing, causing cold air infiltration and higher energy bills. You can stop drafts by replacing worn weatherstripping, applying window film, recaulking joints, adding thermal curtains, and installing storm windows. For persistent issues, consider upgrading to modern energy-efficient windows with proper insulation and low-E coatings.

Key takeaways

• Bay windows develop drafts primarily through deteriorated weatherstripping, failed caulking, and gaps between window components that allow cold air penetration during Canadian winters.
• Immediate solutions include applying weatherstripping tape, installing draft stoppers, and using removable window film to create an insulating air barrier without permanent modifications.
• Professional-grade repairs involve recaulking all joints, replacing worn seals, and upgrading to double-pane windows with argon gas fill for maximum thermal performance.
• Thermal window treatments like cellular shades and insulated curtains can reduce heat loss by up to 25% when properly installed and used consistently during cold months.
• Complete bay window replacement costs between $3,500-$8,000 in Ontario but eliminates drafts permanently while potentially qualifying for window rebates and reducing heating costs by 15-20%.

When should you fix drafty bay windows?

You’ll know it’s time to address bay window drafts when you feel cold air near the glass, notice condensation forming between panes, or see your heating bills climbing without explanation. Winter months reveal these problems most clearly, but acting before temperatures drop saves money and prevents ice buildup.

Seasonal timing matters significantly for repairs. Spring and autumn offer ideal conditions for caulking and weatherstripping work, as materials adhere better in moderate temperatures. However, emergency fixes during winter remain possible when drafts become unbearable.

Consider the cost-benefit equation carefully. If you’re spending an extra $50-$100 monthly on heating due to drafts, investing in proper sealing pays for itself within one season. Small gaps around a bay window can leak as much air as leaving a window open several centimetres.

“Homeowners often underestimate how much energy escapes through bay window assemblies. The angled construction creates multiple junction points where air infiltration occurs, making proper sealing absolutely critical for thermal performance,” explains Vitaly Shapiro, Vice President of Sales.

Tools and materials you’ll need

Gathering the right supplies before starting ensures you won’t need to interrupt your work. Most materials are available at hardware shops, though specialty items may require ordering online.

Basic tools:

• Utility knife with sharp blades
• Caulking gun (standard size)
• Putty knife or scraper
• Measuring tape
• Scissors or shears
• Clean rags and mineral spirits
• Hairdryer or heat gun

Materials needed:

• Weatherstripping tape (foam or V-strip)
• Silicone or acrylic latex caulk (exterior grade)
• Window insulation film kit
• Draft stopper or door snake
• Rope caulk (removable)
• Spray foam insulation (low-expansion)

Optional upgrades:

• Thermal curtains or cellular shades
• Storm window panels
• Magnetic weatherstripping
• Infrared thermometer for detecting leaks

Safety considerations

Working on bay windows involves reaching high areas and handling sharp tools. Always use a stable ladder with someone nearby to steady it. Wear safety glasses when scraping old caulk, as dried pieces can flake into your eyes.

Ventilate the space properly when using caulk or spray foam. These materials release fumes that can cause headaches in enclosed areas. Open windows in adjacent rooms and use a fan to maintain airflow.

Check for mould before sealing gaps. If you spot black or green growth, address it with proper cleaning solutions before trapping moisture inside. Sealing over mould problems creates health hazards and structural damage over time.

Step-by-step instructions

Time required: 3-6 hours depending on bay window size and condition

Step 1: Identify draft sources

Start by locating exactly where air enters. Light a candle or incense stick and move it slowly around the window frame, sashes, and glass edges. Watch for smoke movement that indicates airflow. Mark problem spots with painter’s tape for reference.

Check the junction where the bay window projects from the main wall. This connection point frequently develops gaps as the structure settles. Inspect underneath the bay window seat if your installation includes one, as this area often lacks proper insulation.

Use your hand to feel for temperature differences along the glass and frame. Cold spots reveal where insulation fails or where gaps allow exterior air penetration. An infrared thermometer provides precise measurements if you want detailed data.

Step 2: Remove old weatherstripping and caulk

Peel away deteriorated weatherstripping carefully to avoid damaging the window frame. Stubborn adhesive residue comes off with mineral spirits applied to a rag. Let the surface dry completely before applying new materials.

Scrape out old caulk using a putty knife or specialised caulk removal tool. Work patiently to avoid gouging wood or vinyl surfaces. Some hardened caulk responds better after warming with a hairdryer for 30-60 seconds.

Clean all surfaces thoroughly with rubbing alcohol or a mild detergent solution. Dirt and oils prevent new caulk from adhering properly, leading to premature failure. Dry everything with clean rags before proceeding.

Step 3: Apply new weatherstripping

Measure each section requiring weatherstripping before cutting. Foam tape works well for consistent gaps, whilst V-strip handles varying widths better. Self-adhesive versions simplify installation but require clean, dry surfaces for proper bonding.

Press weatherstripping firmly into place, ensuring no gaps or overlaps. Start at the top of vertical sections and work downward to prevent water from collecting at joints. Corners need special attention – cut precise angles for tight seals.

Test the seal by closing the window and checking resistance. You should feel slight compression but still be able to operate the window normally. Excessive weatherstripping prevents proper closing and damages hardware over time.

“The most common mistake I see is using too much weatherstripping or applying it in the wrong locations. Each window type requires specific placement for optimal performance without interfering with operation,” notes Eugene Siukayev, Project Manager.

Step 4: Recaulk all joints and seams

Load your caulking gun and cut the nozzle at a 45-degree angle for better control. Start with exterior joints where the bay window meets the house siding. Apply steady pressure whilst moving at a consistent speed for even beads.

Smooth fresh caulk immediately with a wet finger or specialised tool. This step pushes material into gaps and creates a professional appearance. Keep a damp rag handy to wipe excess caulk before it dries.

Focus on these critical areas: where glass meets the frame, frame corners, the junction with the main wall, and around any trim pieces. Don’t forget the underside of the bay window projection, which often gets overlooked but leaks significantly.

Step 5: Install window insulation film

Measure your bay window panes and cut the plastic film slightly larger than needed. Clean the glass thoroughly with window cleaner and let it dry completely. Any moisture or dirt prevents the film from adhering properly.

Apply double-sided tape around the window frame’s interior edge. Press the film onto the tape, starting at the top and working downward. Leave the film slightly loose rather than stretching it tight initially.

Use a hairdryer on medium heat to shrink the film. Move the dryer constantly to avoid melting the plastic. The film will tighten and become nearly invisible when properly heated. This creates an insulating air gap between the film and glass that reduces heat transfer significantly.

Step 6: Add thermal window treatments

Install curtain rods or mounting brackets for cellular shades. These treatments work best when mounted as close to the window as possible to trap air effectively. Ensure they extend beyond the window frame on all sides.

Choose treatments with thermal backing or multiple layers. Cellular shades with honeycomb construction trap air in pockets, whilst heavy curtains with insulated linings block cold air. Both options reduce heat loss measurably when closed during cold nights.

Consider magnetic strips along curtain edges to seal against the wall. This prevents air circulation around the treatment edges, maximising insulation value. Even simple measures like keeping curtains closed at night reduce heating costs noticeably.

Step 7: Seal larger gaps with spray foam

Identify substantial gaps around the bay window structure using your earlier draft detection work. Spray foam works for spaces larger than 6mm but requires careful application to avoid overfilling.

Use low-expansion foam specifically designed for windows and doors. Regular expansion foam generates too much pressure and can warp frames. Apply foam in short bursts, filling gaps only halfway as the material expands significantly.

Trim excess foam after it cures completely (usually 8-12 hours). Cut flush with surfaces using a sharp utility knife. Cover exposed foam with paint or caulk, as UV light degrades it over time.

Step 8: Test and verify improvements

Wait 24 hours after completing all sealing work before testing. This allows caulk and foam to cure fully. Repeat your initial draft detection process with a candle or incense stick to verify improvements.

Monitor your bay window during the next cold spell. Condensation should decrease noticeably, and the glass should feel warmer to the touch. Take note of any remaining problem areas that might need additional attention.

Check your heating bills over the following months. Most homeowners see measurable reductions when drafts are properly eliminated. If problems persist, professional assessment might reveal structural issues requiring more extensive repairs.

Common mistakes to avoid

Cost breakdown

Budget considerations vary significantly based on whether you tackle the work yourself or hire professionals. Material costs remain relatively modest for DIY approaches, whilst labour adds substantially to professional installations.

DIY material costs:

• Weatherstripping: $15-$40 depending on quality and quantity
• Caulk (2-3 tubes): $20-$35
• Window insulation film kit: $15-$30 per window
• Spray foam: $8-$15 per can
• Thermal curtains or cellular shades: $80-$300 per bay window
• Tools (if not owned): $30-$60
• Total DIY cost: $170-$480

Professional installation:

• Draft sealing service: $300-$600
• Weatherstripping replacement: $200-$400
• Complete recaulking: $250-$500
• Storm window installation: $400-$800 per bay window
• Total professional cost: $1,150-$2,300

Factors affecting price:

• Bay window size and configuration (larger units require more materials)
• Condition of existing components (severe deterioration needs more prep work)
• Accessibility challenges (second-storey windows increase labour costs)
• Climate zone (extreme weather areas benefit from premium materials)
• Window age and type (older wooden units need different approaches than modern vinyl windows)

Complete bay window replacement represents a larger investment but solves draft problems permanently. New bay windows with modern glazing and proper installation cost $3,500-$8,000 in Ontario, including professional installation. This option makes financial sense when existing windows show multiple failure points or exceed 20-25 years of age.

DIY vs professional installation

Deciding between self-repair and hiring experts depends on your skill level, available time, and the severity of draft problems. Both approaches offer distinct advantages for different situations.

When DIY makes sense:

• Draft problems are minor and localised to obvious gaps
• You have basic home improvement skills and necessary tools
• The bay window is easily accessible from ground level
• Budget constraints make professional service impractical
• You can work during suitable weather conditions
• Window frames and glass remain structurally sound

Risks of DIY:

• Improper sealing can trap moisture and cause mould growth
• Wrong materials may damage window finishes or operation
• Missed air leakage points waste time and materials
• Inadequate repairs fail during the first serious cold snap
• Warranty issues if you damage window components

When to hire professionals:

• Drafts persist despite multiple DIY attempts
• Bay window shows structural sagging or separation from the house
• You notice rot, water damage, or mould around the window
• Second-storey installation requires scaffolding or specialised equipment
• Window glass appears foggy between panes (seal failure)
• You’re considering complete window replacement

Benefits of professional service:

• Comprehensive assessment identifies all problem areas
• Proper materials and techniques ensure long-lasting results
• Work completed quickly without disrupting your schedule
• Warranty coverage protects against future failures
• Expert advice on whether repair or replacement makes more sense

“Bay windows present unique challenges because of their projecting design and multiple angles. Professional installers understand how these structures move with temperature changes and can seal them properly without restricting necessary expansion and contraction,” advises Alexandr Naumov, Project Manager.

Ready to eliminate those drafts?

Stopping bay window drafts improves comfort immediately and reduces energy waste throughout winter. Start with simple weatherstripping and caulking repairs to address obvious gaps. If problems continue or you discover structural issues, consult professionals who can assess whether targeted repairs or complete window replacement makes better financial sense. Visit our showroom to explore modern bay window options that eliminate drafts permanently whilst enhancing your home’s appearance and value.

FAQ

How do I know if my bay window needs complete replacement instead of just sealing?

Replace your bay window if you see rotted wood, foggy glass between panes, significant structural sagging, or if the window is over 25 years old. Multiple failed seals and persistent drafts despite repairs also indicate replacement makes more sense than continued maintenance.

Can I use regular plastic sheeting instead of window insulation film kits?

Avoid regular plastic sheeting as it lacks the shrink properties of proper window film. Insulation kits include special film that tightens with heat to create an airtight seal. Regular plastic wrinkles and doesn’t provide the same insulating air gap or clarity.

Will sealing my bay window cause condensation problems?

Proper sealing actually reduces condensation by preventing cold air infiltration that causes temperature differences. However, ensure adequate home ventilation through bathroom and kitchen fans. Excess indoor humidity needs escape routes to prevent moisture buildup on cold surfaces.

How often should I replace weatherstripping on bay windows?

Inspect weatherstripping annually before winter and replace it every 3-5 years depending on quality and exposure. Foam tape deteriorates faster than V-strip or silicone bulb weatherstripping. Replace immediately if you notice compression set, tears, or adhesive failure.

Do thermal curtains really make a significant difference for drafty bay windows?

Quality thermal curtains reduce heat loss by 15-25% when properly installed and used consistently. They work best combined with other draft-stopping measures rather than as standalone solutions. Close them at dusk and open during sunny days to maximise effectiveness.
