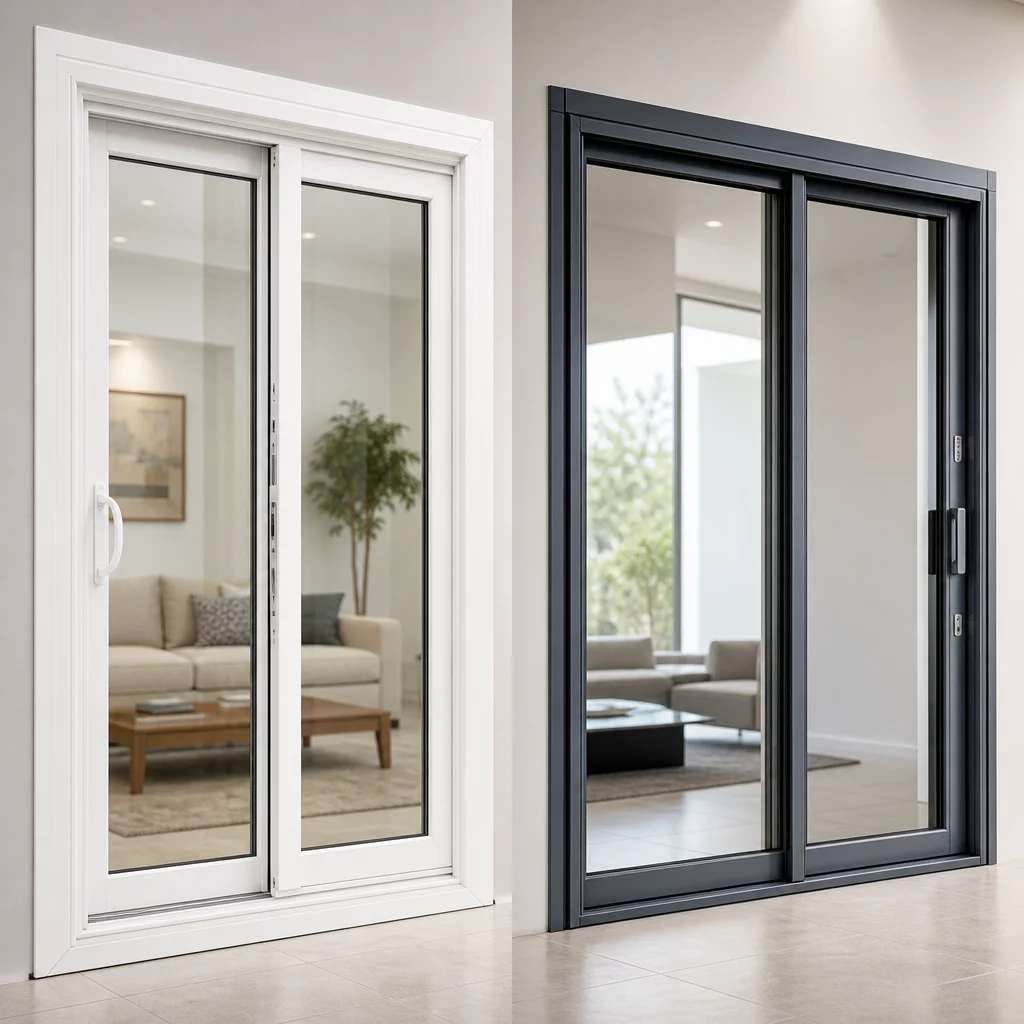

Vinyl vs. Aluminum Doors: Which Framing Material Is Right for You?

You’ve narrowed your door replacement down to two framing materials, but in the showroom, vinyl and aluminum look surprisingly similar. The difference lies beneath the surface—in thermal performance, structural strength, maintenance demands, and long-term value. Vinyl doors excel in energy efficiency and require minimal upkeep, while aluminum doors offer superior strength, slimmer sightlines, and better resistance to physical impact. This guide breaks down every decision factor so you can choose the right material for your home’s climate, budget, and aesthetic goals.

Vinyl doors feature frames made from polyvinyl chloride (PVC), a synthetic polymer that resists moisture, corrosion, and thermal transfer. Aluminum doors use extruded metal frames, often with thermal breaks—insulating barriers that reduce heat flow. Both materials suit patio doors, entry systems, and garden access points, but they perform differently under Canadian weather extremes.

This comparison covers thermal efficiency, structural integrity, security features, maintenance requirements, cost differences, and design flexibility. By the end, you’ll know exactly which material fits your project—whether you’re replacing a single entry door or outfitting an entire home.

At-a-Glance Comparison Table

Vinyl Doors Overview

Vinyl doors dominate the Canadian residential market for good reason. The material itself is a poor conductor of heat, which means frames stay warm in winter and cool in summer without additional insulation. Multi-chamber extrusions—hollow sections within the frame—trap air and further reduce thermal transfer. Most vinyl patio doors achieve U-values below 0.30, meeting ENERGY STAR™ certification thresholds across all climate zones.

Manufacturers reinforce vinyl frames with steel or aluminum inserts, especially in larger configurations like sliding or bifold systems. These reinforcements prevent sagging and maintain structural integrity over decades. Vinyl never rusts, rots, or corrodes, even in high-humidity environments like coastal regions or lakefront properties.

Key Advantages

• Superior thermal performance: Low conductivity reduces heat loss by up to 30% compared to non-thermally broken aluminum
• Zero maintenance: No painting, staining, or sealing required; occasional soap-and-water cleaning suffices
• Moisture resistance: Impervious to water damage, ideal for basement walkouts and humid climates
• Cost-effective: Typically 15–25% less expensive than comparable aluminum systems
• Noise reduction: Dense material dampens sound transmission better than metal

Limitations and Trade-Offs

• Colour stability: Darker shades may fade over time under intense UV exposure
• Profile thickness: Wider frames reduce glass area and can feel bulkier in modern designs
• Size constraints: Large openings (over 10 feet wide) require additional reinforcement or multiple panels
• Temperature sensitivity: Extreme cold can make vinyl brittle; extreme heat may cause minor expansion

Ideal Use Cases

Vinyl doors work best in energy-conscious projects where thermal performance drives the decision. They’re perfect for backyard doors in cold climates, basement walkouts requiring moisture resistance, and budget-focused renovations. Choose vinyl when you want low-maintenance performance without sacrificing ENERGY STAR™ certified efficiency.

“Vinyl frames deliver exceptional insulation value straight out of the box. For homeowners prioritizing energy savings and minimal upkeep, it’s the most reliable choice in Ontario’s climate,” says Vitaly Shapiro, Vice President of Sales.

Aluminum Doors Overview

Aluminum doors bring architectural precision and structural strength that vinyl can’t match. The material’s inherent rigidity allows for taller panels, wider spans, and slimmer sightlines—critical for contemporary designs that maximize glass area. Modern aluminum doors incorporate thermal breaks, polyamide or polyurethane barriers that separate interior and exterior metal sections, dramatically improving insulation performance.

Powder coating protects aluminum from oxidation and offers unlimited colour options, including custom matches to architectural specifications. Unlike painted finishes, powder coating bonds molecularly to the metal, resisting chips, scratches, and UV degradation for decades. Aluminum frames maintain dimensional stability across temperature extremes—they won’t warp, sag, or twist even in large configurations.

Key Advantages

• Exceptional strength-to-weight ratio: Supports floor-to-ceiling glass panels and wide openings without sagging
• Slim profiles: Maximizes glass area, ideal for glass wall systems and modern aesthetics
• Unlimited colour options: Powder coating allows custom finishes, including metallic and textured surfaces
• Longevity: Properly maintained aluminum lasts 30–40 years with minimal degradation
• Recyclability: Aluminum is infinitely recyclable without quality loss, reducing environmental impact

Limitations and Trade-Offs

• Higher cost: Typically 20–35% more expensive than vinyl due to material and manufacturing complexity
• Thermal performance dependency: Requires high-quality thermal breaks; budget models conduct heat rapidly
• Condensation risk: Inadequate thermal breaks can cause interior condensation in cold weather
• Professional installation required: Precision tolerances demand experienced installers

Ideal Use Cases

Aluminum excels in large-format applications—bifold systems, stacking doors, and floor-to-ceiling configurations where structural strength is non-negotiable. It’s the go-to choice for modern architectural styles, commercial-grade residential projects, and installations requiring custom colours. Select aluminum when design flexibility and long-term durability outweigh upfront cost.

“For expansive openings and contemporary designs, aluminum provides the structural integrity and slim profiles that vinyl simply can’t achieve. The thermal break technology we use today rivals vinyl’s efficiency,” explains Daniel Klein, Project Manager.

Head-to-Head: Key Decision Factors

Energy Efficiency

Vinyl wins on raw thermal performance. The material’s cellular structure and multi-chamber design create natural insulation barriers. Standard vinyl doors achieve U-values between 0.25 and 0.30 without additional treatments. Aluminum requires thermal breaks to compete—polyamide barriers that interrupt heat flow between interior and exterior metal sections. High-quality thermally broken aluminum can match vinyl’s U-values, but budget models without adequate breaks perform poorly, with U-values exceeding 0.50.

Air infiltration matters as much as U-values. Both materials, when properly installed with quality weatherstripping, achieve air leakage rates below 0.30 cubic feet per minute per square foot of door area—well within Natural Resources Canada ENERGY STAR™ certification standards. Vinyl’s compression seals tend to maintain tighter tolerances over time compared to aluminum’s brush or fin seals.

Ventilation and Airflow

Material choice doesn’t significantly impact ventilation—operating style does. Both vinyl and aluminum frames accommodate sliding, swinging, and folding mechanisms equally well. Aluminum’s strength advantage allows for larger operable panels, which can increase airflow in bifold or stacking configurations. Vinyl systems work best in standard sliding or hinged formats where panel sizes remain moderate.

Security

Aluminum frames offer inherent resistance to forced entry. The material doesn’t flex or crack under impact, and reinforced corners create rigid structures that resist prying. Vinyl doors rely on internal steel or aluminum reinforcements for comparable security. Both materials accommodate multi-point locking systems—the TotalSeal Multi-Point Locking System engages at three or more points along the frame, distributing force and preventing leverage attacks.

Frame strength matters less than lock quality and installation precision. A poorly installed aluminum door is less secure than a properly installed vinyl door with a high-quality lock. Focus on certification—look for systems tested to ANSI/BHMA Grade 1 standards for residential security.

Ease of Operation and Accessibility

Vinyl doors typically operate more smoothly in extreme cold. The material doesn’t conduct cold as readily, so handles and locks remain easier to grip. Aluminum handles can become uncomfortably cold in winter, though this is easily mitigated with insulated hardware. Both materials support low-threshold designs required for wheelchair accessibility and egress windows compliance.

Weight differences affect daily use. Aluminum’s strength allows thinner frames, which can make large sliding panels easier to operate despite the material’s density. Vinyl’s lighter weight benefits hinged doors, reducing stress on hardware over time.

Price and Installation Cost

Installation costs vary by region and complexity but typically add 15–25% to material costs. Aluminum requires more precise installation, which can increase labour charges. Regional factors—accessibility, permit requirements, and seasonal demand—affect final pricing more than material choice. Check current promotions for potential savings.

Maintenance and Lifespan

Vinyl demands almost no maintenance. Wash frames twice yearly with mild detergent and water. Lubricate moving parts annually. Expect 20–30 years of service with minimal intervention. Vinyl won’t rust, rot, or corrode, but UV exposure can cause colour fading in darker shades—choose lighter colours for south-facing installations.

Aluminum requires slightly more attention. Clean frames quarterly to prevent dirt buildup in tracks and weatherstripping. Inspect thermal breaks every five years for separation or degradation. Powder coating lasts 20+ years but may require touch-ups in high-traffic areas. Properly maintained aluminum doors last 30–40 years, outlasting vinyl by a decade.

Aesthetics and Curb Appeal

Aluminum dominates modern and contemporary designs. Slim profiles, clean lines, and custom colour options suit minimalist architecture. Powder coating allows exact matches to exterior cladding, trim, or accent colours. Black windows and doors—a popular contemporary choice—look sharper in aluminum, where colour remains consistent through the material’s thickness.

Vinyl suits traditional and transitional styles. Wider profiles complement classic proportions, and standard colours—white, beige, tan—integrate seamlessly with most exteriors. Vinyl’s limitations in custom colours and slim profiles make it less suitable for cutting-edge architectural statements.

Which Should You Choose?

Choose Vinyl Doors If:

• Energy efficiency is your top priority and you want the lowest U-values without thermal break complexity
• Budget constraints require maximizing value—vinyl delivers excellent performance at lower cost
• You prefer zero-maintenance solutions and want to avoid periodic refinishing or repainting
• Your project involves standard door sizes (under 10 feet wide) where vinyl’s strength is adequate
• You live in a humid climate or near water where corrosion resistance matters

Choose Aluminum Doors If:

• You’re installing large-format systems—bifold, stacking, or floor-to-ceiling configurations—requiring maximum strength
• Modern or contemporary architecture demands slim sightlines and expansive glass areas
• Custom colour matching is essential to your design vision
• Long-term durability justifies higher upfront investment—you plan to stay in your home 20+ years
• You value recyclability and environmental sustainability in building materials

The decision often comes down to project scope and design intent. Vinyl excels in energy-focused, budget-conscious projects where standard sizes and colours work. Aluminum shines in architectural statements requiring structural strength and aesthetic precision. Many homeowners mix materials—vinyl for windows replacement and secondary doors, aluminum for primary entries and large patio systems.

Making the Final Decision

If energy savings drive your decision and your budget is moderate, vinyl delivers unmatched thermal performance and low maintenance. If you’re building a modern home with expansive openings and custom finishes, aluminum’s strength and design flexibility justify the premium. Both materials perform well when properly specified and installed—the “wrong” choice is the one that doesn’t match your project’s priorities.

Total Home Windows and Doors manufactures both vinyl and aluminum systems with ENERGY STAR™ certified performance and the TotalSeal Multi-Point Locking System. Our A+ BBB accreditation, 4.9 Google rating, and 5.0 Homestars rating reflect our commitment to quality across all product lines. Whether you choose vinyl or aluminum, you’re getting professionally engineered doors backed by comprehensive warranties.

Ready to move forward? Schedule a consultation at our showroom to see both materials in person, compare thermal performance data, and get accurate pricing for your specific project. Our team will help you select the right material, operating style, and configuration to meet your home’s needs. Get a free quote today and discover how the right door material transforms your home’s comfort, security, and value.

Frequently Asked Questions

Can vinyl doors be painted or refinished?

Vinyl cannot be painted successfully—coatings don’t adhere properly and peel within months. Choose your colour carefully at purchase, as it’s permanent. Aluminum accepts new powder coating if you want to change colours later.

Do aluminum doors rust or corrode?

Aluminum forms a natural oxide layer that prevents corrosion. Powder coating adds extra protection. Unlike steel, aluminum won’t rust even in coastal environments. Properly finished aluminum resists corrosion for decades without treatment.

Which material performs better in extreme cold?

Vinyl maintains better thermal performance in extreme cold due to inherently low conductivity. Aluminum requires high-quality thermal breaks to prevent heat loss and interior condensation. Both materials remain structurally sound below -40°C.

Are vinyl doors less secure than aluminum?

Security depends on reinforcement and locking systems, not base material. Quality vinyl doors with internal steel reinforcements and multi-point locking systems match aluminum’s security. Focus on lock certification rather than frame material alone.

How do I know if my aluminum door has thermal breaks?

Look for a visible non-metallic strip between interior and exterior frame sections—usually black or grey polyamide. Check product specifications for “thermally broken” or “thermally improved” designations. Budget aluminum doors often lack thermal breaks entirely.
