How to Measure a Bow Window Accurately

Measuring a bow window requires taking precise width, height, and projection measurements at multiple points across the curved frame. You’ll need to measure the rough opening width from jamb to jamb, the height from sill to header, and the projection from the wall to the furthest point of the curve. These dimensions ensure proper fit during installation and help you order the correct replacement unit or plan renovations accurately.

Key takeaways

• Measure width at three points (top, middle, bottom) and use the smallest dimension to ensure proper fit within the rough opening.
• Record height measurements on both left and right sides of the frame, then use the shorter measurement for ordering purposes.
• Calculate projection by measuring the perpendicular distance from the exterior wall to the outermost point of the bow window curve.
• Document the number of window sections in your bow configuration, as most units contain four to six individual casement or fixed panels.
• Account for trim, brick mould, and exterior cladding when measuring for window replacement projects to avoid ordering undersized units.

When should you measure a bow window?

You’ll need accurate bow window measurements in several situations. If you’re planning a replacement project, precise dimensions prevent costly ordering mistakes and installation delays. Homeowners typically measure when they notice drafts, condensation between panes, or visible frame deterioration that signals the need for new units.

Seasonal considerations matter too. Winter drafts around your bow window indicate air leakage that wastes heating costs. Summer heat gain through old, inefficient glass drives up cooling expenses. Measuring during these problem periods helps you understand the urgency of replacement.

The cost-benefit timing also plays a role. If your bow window is over 20 years old and showing multiple signs of wear, measuring now lets you budget for replacement before emergency situations arise. You can take advantage of seasonal promotions when you have measurements ready.

Renovation projects require measurements too. Adding window treatments, building a seat beneath the unit, or planning exterior landscaping all depend on knowing exact dimensions. Even home inspection preparations benefit from having current measurements documented.

Tip: Measure on a dry day when the window frame isn’t swollen from moisture. This gives you the most accurate dimensions for ordering replacement units.

According to Vitaly Shapiro, Vice President of Sales, “Canadian homeowners often wait until visible damage appears before measuring their bow windows. The best time is actually during your annual home maintenance check, so you’re prepared when replacement becomes necessary.”

Tools and materials you’ll need

Gathering the right equipment before you start ensures accurate measurements. You’ll avoid repeated trips up ladders and reduce measurement errors significantly.

Basic tools:

• 25-foot metal tape measure (cloth tapes stretch and give false readings)
• Notepad and pencil for recording dimensions
• Step ladder or stable platform for reaching upper measurements
• Level (2-foot or longer) for checking plumb and square
• Flashlight for inspecting dark corners and recesses

Optional tools:

• Digital laser measure for hard-to-reach projection measurements
• Smartphone camera to photograph the window and reference later
• Carpenter’s square for verifying right angles
• Chalk or painter’s tape for marking measurement points

Materials for documentation:

• Graph paper for sketching the window layout
• Measurement worksheet (many window manufacturers provide templates)
• Masking tape for labelling measurement locations

Safety notes

Working around bow windows involves heights and awkward positions. Always use a sturdy ladder with non-slip feet and have someone spot you when measuring upper sections. Never lean out from a bow window to measure exterior dimensions—use a ladder positioned outside instead.

Check for broken glass, sharp edges, or deteriorated frames before handling old windows. Wear work gloves when touching weathered frames that might have splinters or metal burrs. If you’re measuring a second-storey bow window, consider hiring a professional rather than risking a fall.

Watch for electrical wiring near the window frame, especially if you’re planning to remove trim for more accurate measurements. Keep your workspace clear of tools and materials that could cause trips or falls.

Step-by-step instructions

Time required: 30-45 minutes for a standard bow window

Step 1: Prepare the measurement area

Clear furniture, curtains, and window treatments away from the bow window. You need unobstructed access to all sides of the frame. Remove any blinds or shades that might interfere with your tape measure. Clean the window sill and surrounding areas so you can see the actual frame edges clearly.

Identify whether you’re measuring the rough opening (the hole in the wall) or the existing window unit. For replacement projects, you typically measure the rough opening. If the old window is still in place, you may need to remove interior trim to access these dimensions.

Step 2: Measure the width

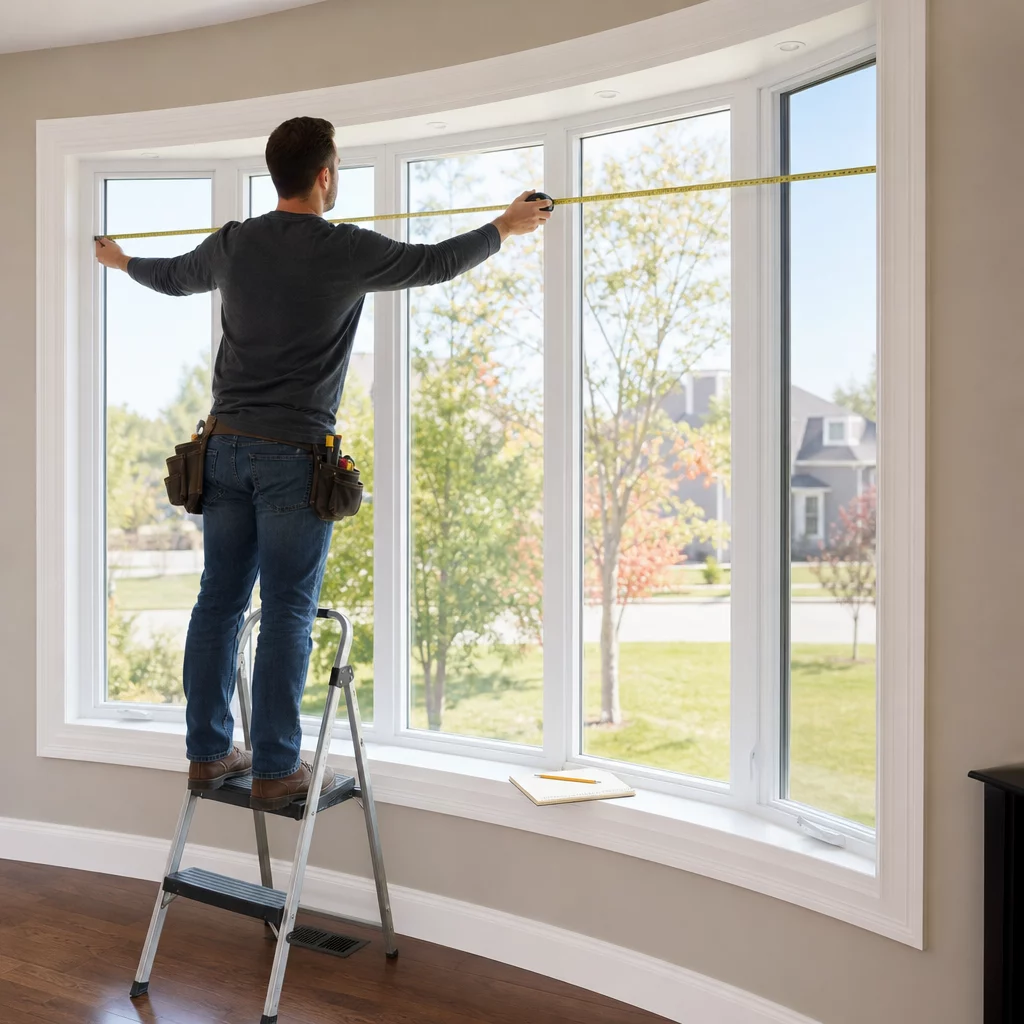

Measure the width at three points: top, middle, and bottom of the rough opening. Extend your tape measure from the left jamb to the right jamb at each location. The frame might not be perfectly square, so these measurements often differ slightly.

Record all three width measurements. For ordering purposes, use the smallest width dimension. This ensures your new bow window fits within the opening without forcing or trimming the frame.

When measuring bow windows, measure along the chord (the straight line across the opening), not following the curve of the existing unit. The chord measurement tells you the wall opening size, which determines what replacement unit you can install.

Step 3: Measure the height

Take height measurements on both the left and right sides of the opening. Measure from the sill (bottom) to the header (top) at each location. Windows settle over time, creating uneven openings.

Record both measurements and use the shorter dimension for ordering. Like width measurements, this prevents ordering a unit that’s too tall for the actual opening.

Check if there’s a sloped sill for water drainage. If so, measure height from the highest point of the sill to maintain proper clearance.

Step 4: Measure the projection

Projection is the distance the bow window extends outward from your exterior wall. Measure from the interior wall surface (where the window meets the wall) to the furthest point of the bow curve.

This measurement is crucial for bay window dimensions and bow window sizing. It affects interior space, exterior appearance, and structural support requirements. Use a straight edge or level held against the wall, then measure perpendicular to the bow’s apex.

For existing bow windows, measure the actual projection of the installed unit. For new installations, you’ll need to decide how far you want the window to project based on your space and aesthetic preferences.

Step 5: Count and measure individual sections

Bow windows consist of multiple window sections joined at angles. Count how many individual panels your bow window contains—typically four, five, or six sections.

Measure the width of each individual section if you’re replacing just one damaged panel. Note whether sections are casement windows, fixed windows, or a combination. This information is essential when ordering replacement parts or planning a full replacement.

Document which sections open and which are fixed. Many bow windows have operable end sections with fixed centre panels for ventilation and structural integrity.

Step 6: Measure the depth

Measure the frame depth from the interior edge to the exterior edge. This tells you the wall thickness and helps determine what size window frame you need.

Standard wall depths in Canadian homes range from 4 to 6 inches, but older homes or those with additional insulation may vary. The window frame must accommodate this depth while providing proper insulation and weatherproofing.

Step 7: Check for square and level

Use your level to check if the opening is plumb (vertically straight) and level (horizontally straight). Place the level against the side jambs to check plumb, then along the sill and header to check level.

Note any deviations. If the opening is more than 1/4 inch out of square, you may need structural adjustments before installing a replacement bow window. Small variations can be compensated with shims during installation.

Step 8: Measure exterior trim and brick mould

If your bow window has exterior trim or brick mould, measure these dimensions separately. Record the width of the trim on all sides. This information helps when ordering replacement units with matching exterior finishes.

Measure from the outside edge of the trim to the window frame. This shows how much overlap exists and whether you’re replacing just the window or the entire assembly including trim.

Step 9: Document additional features

Note any special features like built-in seats, shelf platforms, or support brackets. Measure the seat depth and width if present. These elements affect replacement options and installation complexity.

Photograph the window from multiple angles—interior, exterior, and close-ups of hardware and connections. Pictures help suppliers understand your specific configuration when you’re ordering materials.

Tip: Draw a simple sketch of your bow window with all measurements labelled. This visual reference prevents confusion when discussing your project with contractors or suppliers.

Eugene Siukayev, Project Manager, notes that “The most common measurement mistake is forgetting to account for the rough opening versus the window unit size. Always clarify which dimension you’re providing when requesting quotes.”

Step 10: Verify all measurements

Go through your entire measurement process a second time to confirm accuracy. Small errors multiply during manufacturing and installation, potentially costing hundreds of dollars in returns or modifications.

Compare your measurements against standard bow window sizes to ensure they’re reasonable. If your dimensions seem unusual, remeasure before proceeding. Most residential bow windows range from 6 to 10 feet wide with projections of 12 to 24 inches.

Common mistakes to avoid

Mistake	How to fix it
Measuring the existing window unit instead of the rough opening	Remove interior trim to expose the actual wall opening; measure from jamb to jamb, not frame to frame
Using the largest dimension instead of smallest	Always use the smallest width and height measurements to ensure the new unit fits within the opening
Forgetting to measure projection depth	Measure perpendicular from the wall to the furthest curve point; this affects structural support requirements
Not accounting for out-of-square openings	Check all corners with a level and square; note deviations greater than 1/4 inch for contractor assessment
Measuring with a cloth tape that stretches	Use a metal tape measure for all dimensions; cloth tapes can give readings off by 1/2 inch or more
Ignoring exterior trim and brick mould dimensions	Measure and document all exterior trim separately; replacement may require matching or removing these elements

Another frequent error is measuring in only one location per dimension. Temperature changes, settling, and structural movement create variations across the opening. Always take multiple measurements and use the most conservative figures.

Homeowners also forget to measure the diagonal distances from corner to corner. Equal diagonals confirm a square opening. Unequal diagonals indicate the frame is out of square, which affects installation difficulty and cost.

Cost breakdown

Understanding the financial aspects helps you budget appropriately for your bow window project. Costs vary based on size, materials, and installation complexity.

Material costs:

• Standard vinyl bow window (6-8 feet wide): $2,500-$4,500
• Wood bow window with quality finish: $4,000-$7,500
• Fibreglass or composite bow window: $3,500-$6,000
• Custom sizes or configurations: add 20-40% to base prices

Professional installation costs:

• Standard installation: $800-$1,500 per window
• Structural modifications (if needed): $500-$2,000 additional
• Exterior trim and finishing: $300-$800
• Interior trim and drywall repair: $200-$600

Total project costs for professional bow window replacement typically range from $3,500 to $9,000 per window. Window replacement cost depends heavily on your specific measurements, chosen materials, and local labour rates.

DIY installation saves $800-$1,500 in labour but requires significant skill. You’ll still need materials like shims, insulation, sealants, and trim, adding $100-$300 to your material costs.

Cost factor	Impact on total price
Window size (per square foot)	Larger units cost $50-$100 more per additional square foot
Number of operable sections	Each operable section adds $200-$400 versus fixed panels
Glass upgrades (Low-E, argon fill)	Energy-efficient windows add 15-25% to base window cost
Frame material upgrade	Wood or fibreglass costs 30-50% more than vinyl
Structural support requirements	Support brackets and reinforcement add $300-$1,000

Ontario homeowners may qualify for window rebate programmes that offset 10-25% of energy-efficient window costs. Accurate measurements are required for rebate applications, making proper measurement essential beyond just ordering the right size.

DIY vs professional installation

Deciding whether to tackle bow window installation yourself or hire professionals depends on your skills, tools, and project complexity. Each approach has distinct advantages and challenges.

When DIY is realistic:

• You have experience with carpentry and window installation
• The existing opening is square and requires no structural modifications
• You have access to necessary tools including levels, shims, and sealants
• You can dedicate 6-10 hours to the project with a helper
• The window is on the ground floor with easy access

When to hire professionals:

• The window is on a second storey or higher
• Structural modifications or support bracket installation is needed
• The rough opening is significantly out of square
• You lack experience with door installation or similar projects
• Local building codes require permitted work with inspections
• You want warranty coverage that requires professional installation

DIY risks:

• Improper sealing leads to air leakage and water infiltration
• Incorrect shimming causes operational problems and frame stress
• Inadequate structural support may result in sagging over time
• Measurement errors discovered during installation require expensive returns
• Voided manufacturer warranties if installation doesn’t meet specifications

DIY benefits:

• Save $800-$1,500 in professional labour costs
• Complete the project on your own schedule
• Gain valuable home improvement skills and experience
• Ensure work meets your personal quality standards

Professional installation risks:

• Higher upfront costs reduce short-term budget flexibility
• Scheduling depends on contractor availability
• Quality varies between contractors—research is essential
• Some contractors subcontract work, reducing quality control

Professional installation benefits:

• Expertise prevents costly mistakes and ensures proper fit
• Warranty coverage protects your investment
• Faster completion—typically one day versus weekend-long DIY projects
• Proper tools and equipment for safe, efficient installation
• Knowledge of local building codes and permit requirements

Alexandr Naumov, Project Manager, explains that “Bow windows require precise installation because of their projection and weight distribution. Even experienced DIYers often benefit from professional help, especially for structural support and exterior sealing.”

Next steps for your bow window project

Now that you have accurate measurements, contact Total Home Windows and Doors for a detailed quote on your bow window replacement. Our team will review your dimensions, discuss material options, and provide a comprehensive estimate that includes installation. Visit our showroom to see bow window displays and speak with our experts about your specific project requirements.

FAQ

How do I measure a bow window for curtains or blinds?

Measure the inside width of each section individually if installing separate treatments, or measure the total inside width for continuous treatments. Add 2-4 inches beyond the frame on each side for proper coverage and light blocking.

What’s the difference between measuring a bow window and a bay window?

Bay windows have distinct angles between sections, while bow windows form a gentle curve. Bow windows require chord measurements across the opening, whereas bay windows need individual section angles and projection measurements at specific points.

Can I measure a bow window from the outside?

Yes, but interior measurements are more accurate for replacement purposes. Exterior measurements include trim and siding, which don’t reflect the actual rough opening size. Always measure from inside when ordering replacement windows to ensure proper fit.

Do I need to remove the old bow window before measuring?

Not necessarily. Remove interior trim to expose the rough opening edges for accurate measurements. The old window can remain in place until your replacement arrives, maintaining home security and weather protection during the ordering process.

How much projection should a bow window have?

Standard bow window projections range from 12 to 24 inches from the wall. The ideal projection depends on your interior space, exterior appearance preferences, and structural support capabilities. Consult with professionals to determine the best projection for your specific situation.
