Thermal bridging in windows and doors occurs when heat transfers through materials that conduct energy more readily than surrounding insulation, creating cold spots and energy loss in your home. This phenomenon happens at frames, sills, and jambs where metal or poorly insulated materials create pathways for heat to escape during winter or enter during summer. Preventing thermal bridging requires selecting energy-efficient windows with thermally broken frames, proper installation techniques, and understanding how different materials perform in Canadian climates.
Key takeaways
- Thermal bridging reduces window and door performance by up to 30%, significantly impacting heating and cooling costs
- Thermally broken frames with insulating barriers prevent heat transfer through conductive materials like aluminum
- Proper installation with insulated shims and low-expansion foam eliminates bridging at rough openings
- Multi-chamber vinyl frames and fibreglass materials naturally resist thermal bridging better than metal
- ENERGY STAR™ certified products meet strict thermal performance standards that minimize bridging effects
Window and Doors Replacement Near Me
What exactly causes thermal bridging in window and door systems?
Thermal bridging happens when conductive materials create uninterrupted pathways through the building envelope. Window and door frames made from aluminum, steel, or other metals conduct heat 1,000 times faster than insulating materials. These materials essentially bypass the insulation you’ve invested in, creating weak points in your home’s thermal barrier.
The frame represents the largest area where bridging occurs. Even high-performance glazing loses effectiveness when mounted in frames that conduct heat freely. The spacer between glass panes, attachment points, and hardware also contribute to thermal transfer. Understanding these weak points helps homeowners make informed decisions when selecting vinyl windows or other replacement options.
Vitaly Shapiro, Vice President of Sales, explains: “We see significant temperature differences at thermal bridges—sometimes 10-15 degrees Celsius colder than surrounding areas. This not only wastes energy but creates condensation problems that lead to mold growth and structural damage in Canadian homes.”
Find related services
How do different frame materials handle thermal bridging?
Material selection dramatically affects thermal performance. Each frame type has distinct characteristics that influence heat transfer rates and overall energy efficiency in your home.
| Frame Material | Thermal Conductivity | Bridging Risk | Best Application |
|---|---|---|---|
| Vinyl (PVC) | Low (0.17 W/mK) | Minimal | Residential windows, all climates |
| Fibreglass | Very Low (0.35 W/mK) | Very Low | Extreme climates, entry doors |
| Thermally Broken Aluminum | Medium (varies) | Moderate | Commercial, modern aesthetics |
| Standard Aluminum | High (205 W/mK) | Severe | Not recommended for Canadian winters |
| Wood | Low (0.12 W/mK) | Low | Heritage homes, maintenance-tolerant owners |
Vinyl frames with multi-chamber designs provide excellent thermal resistance. These chambers trap air, creating additional insulation layers within the frame itself. Fibreglass doors and windows offer similar benefits with added structural strength, making them ideal for large openings like patio doors.
Explore energy-efficient options

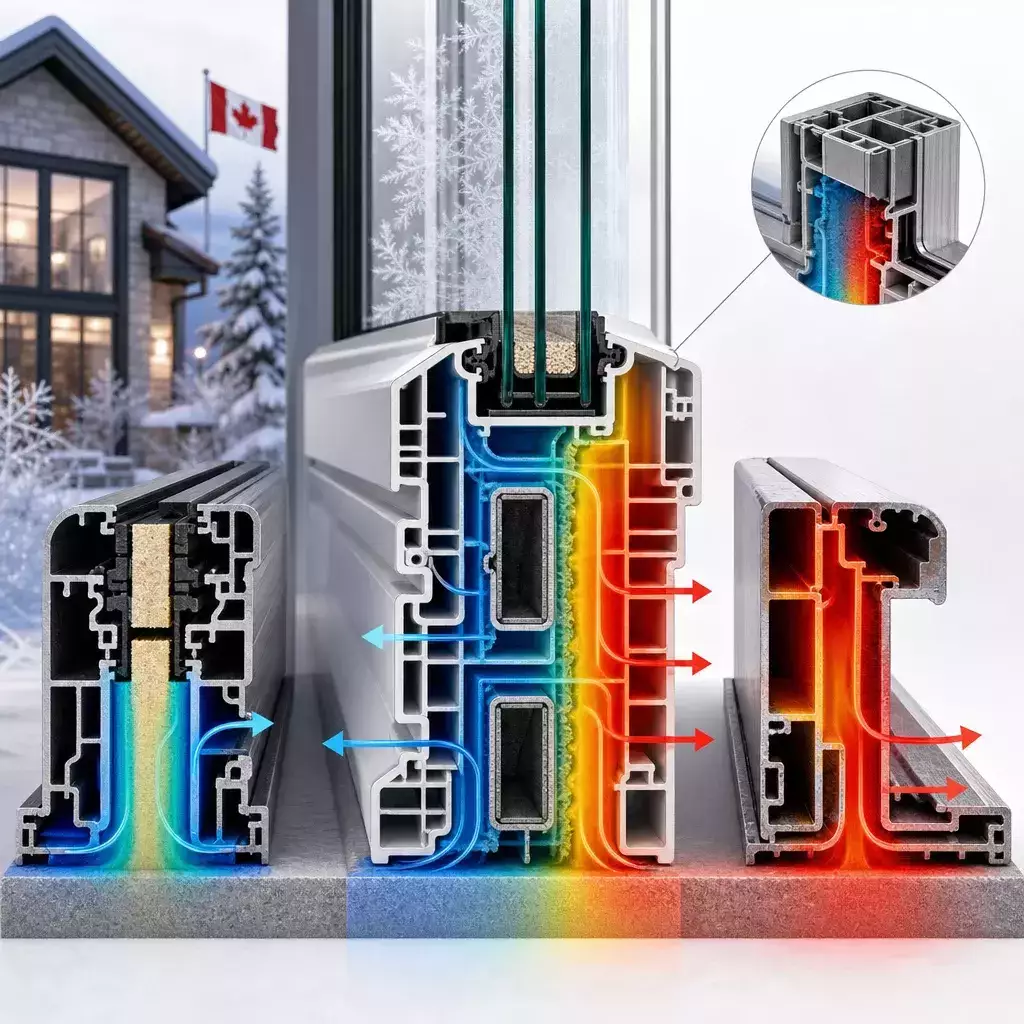

What role do thermal breaks play in aluminum windows and doors?
Thermal breaks are insulating barriers inserted between interior and exterior aluminum sections. This technology transforms aluminum from a poor thermal performer into a viable option for energy-conscious homeowners. The break interrupts the conductive pathway, preventing heat transfer through the metal frame.
Modern aluminum windows incorporate polyamide or polyurethane thermal breaks that range from 15mm to 45mm wide. Wider breaks provide better thermal performance but increase costs. According to Natural Resources Canada, thermally broken aluminum frames can achieve U-factors comparable to vinyl when properly designed.
The manufacturing process bonds these insulating strips into the aluminum extrusions, creating a single integrated unit. This approach maintains the structural benefits of metal while dramatically reducing heat transfer. For homeowners who prefer the sleek appearance of aluminum doors, thermally broken options provide the best balance of aesthetics and performance.
Find the Best Window Styles for your Home
How does proper installation prevent thermal bridging?
Even the best windows fail when installed incorrectly. The rough opening—the space between your window frame and house framing—represents a critical area where thermal bridging occurs if not properly addressed. Professional installers must create continuous insulation around the entire perimeter.
Here’s what proper installation involves:
- Installing insulated shims that don’t compress over time, maintaining the insulation barrier
- Applying low-expansion foam insulation around the frame perimeter without gaps
- Sealing all penetrations with appropriate materials rated for thermal performance
- Creating an air barrier that connects the window to the house wrap or building envelope
- Ensuring proper flashing to prevent water infiltration that degrades insulation
Many installers use wood shims, which create thermal bridges themselves. Composite or plastic shims provide better thermal performance. The door installation process follows similar principles, with additional attention to threshold details where significant heat loss occurs.
Daniel Klein, Project Manager, notes: “We’ve measured installation quality making a 20-25% difference in overall window performance. The gap between the rough opening and frame must be completely filled with proper insulation—no voids, no compressed areas, no thermal shortcuts.”
Best window companies reviews
Which window features minimize thermal bridging effects?
Beyond frame material, several design features reduce thermal bridging. Warm edge spacers between glass panes prevent heat transfer at the glazing perimeter. Traditional aluminum spacers create significant bridging; modern foam, fibreglass, or stainless steel spacers dramatically improve edge performance.
Multi-chamber frame designs add thermal resistance. Quality vinyl windows feature three to six chambers within the frame profile. Each chamber traps air, creating insulating pockets that interrupt heat flow. Some manufacturers fill these chambers with insulating foam for even better performance.
The TotalSeal Multi-Point Locking System provides security while maintaining thermal integrity. Unlike basic locks that create gaps, multi-point systems compress weatherstripping uniformly around the entire sash, eliminating air leakage paths that contribute to thermal bridging effects.
How do different door types compare for thermal bridging resistance?
| Door Type | Core Insulation | Frame Bridging | Overall Thermal Performance |
|---|---|---|---|
| Steel Entry Doors | Polyurethane foam | Moderate (steel conducts) | Good with thermal break |
| Fibreglass Doors | Polyurethane foam | Low (fibreglass resists) | Excellent |
| Vinyl Patio Doors | Multi-chamber frame | Very Low | Excellent |
| Wood Doors | Solid or foam core | Low (wood insulates) | Good (requires maintenance) |
Steel doors require careful attention to frame design. The steel itself conducts heat readily, but modern steel doors incorporate thermal breaks and insulated cores that achieve impressive R-values. The magnetic weatherstripping on quality steel doors also prevents air leakage that exacerbates thermal bridging.
What are the real-world energy impacts of thermal bridging?
Thermal bridging affects your energy bills directly. A window with excellent glazing (U-0.20) but poor frame performance (U-0.80) might achieve only U-0.35 overall—significantly worse than expected. This translates to hundreds of dollars in additional heating costs annually in Canadian climates.
Condensation provides visible evidence of thermal bridging. When frame temperatures drop below the dew point, moisture condenses on surfaces. This isn’t just cosmetic—persistent condensation leads to mold growth, paint damage, and wood rot around openings. Addressing thermal bridging eliminates these moisture problems at their source.
The financial impact extends beyond energy costs. Homes with significant thermal bridging issues face reduced comfort, increased HVAC wear, and potential structural damage. Investing in proper windows replacement with thermally optimized products pays dividends through lower operating costs and improved durability.
How can homeowners identify thermal bridging problems?
Several indicators reveal thermal bridging issues in existing windows and doors. Cold spots around frames during winter represent the most obvious sign. You can feel temperature differences simply by placing your hand near the frame versus the wall.
Visual inspection reveals other clues:
- Condensation or frost forming on interior frame surfaces
- Ice buildup on exterior frames or between panes
- Discoloration or mold growth around window perimeters
- Peeling paint or deteriorating caulk at frame junctions
- Drafts detectable with a candle or incense smoke test
Thermal imaging cameras provide definitive evidence. These devices display temperature variations in false color, making thermal bridges immediately visible. Many energy auditors include thermal imaging in their assessments, identifying problem areas that warrant attention during window replacement projects.
What solutions address thermal bridging in existing homes?
Complete replacement offers the most effective solution for severe thermal bridging. Modern ENERGY STAR™ certified windows incorporate decades of thermal engineering advances. Products from Total Home Windows and Doors feature optimized frame designs, warm edge spacers, and proper installation protocols that eliminate bridging issues.
For homeowners not ready for full replacement, several interim measures help:
- Apply window film or cellular shades that create additional insulating air layers
- Seal all gaps between frames and rough openings with appropriate caulking
- Install interior storm windows that add thermal resistance and reduce frame temperature differentials
- Add exterior storm windows or doors that protect existing units from temperature extremes
- Improve attic and wall insulation to reduce overall heat loss, making window bridging less significant
These temporary solutions reduce but don’t eliminate thermal bridging. They work best as stopgap measures while planning for comprehensive upgrades. The energy savings from proper energy-efficient windows typically justify replacement costs within 8-12 years through reduced utility bills.
How do ENERGY STAR requirements address thermal bridging?
ENERGY STAR™ certification requires products to meet strict whole-unit thermal performance standards. These ratings account for frame, spacer, and glazing performance together—not just glass properties. This holistic approach ensures thermal bridging doesn’t undermine overall efficiency.
For Canada’s climate zones, ENERGY STAR™ certified windows must achieve specific U-factor and Energy Rating (ER) values. These requirements force manufacturers to address thermal bridging through proper frame design, warm edge spacers, and quality construction. Products that meet these standards demonstrate proven thermal performance in real-world conditions.
Total Home Windows and Doors manufactures ENERGY STAR™ certified products that exceed minimum requirements. The combination of multi-chamber vinyl frames, advanced spacer technology, and low-E glass coatings creates windows that minimize thermal bridging while maximizing energy savings. These products carry independent testing certifications that verify their thermal performance claims.
What advanced technologies reduce thermal bridging?
Foam-filled frames represent a significant advancement in thermal performance. Manufacturers inject expanding polyurethane foam into frame chambers, eliminating air movement and adding R-value. This technology particularly benefits larger windows and patio doors where frame area represents a substantial portion of total unit size.
Composite materials combine different substances to optimize thermal and structural properties. Fibreglass-reinforced vinyl offers strength without thermal conductivity. Wood-polymer composites provide wood’s insulating properties with vinyl’s weather resistance. These engineered materials specifically address thermal bridging while meeting other performance requirements.
Triple-pane glazing with argon gas fill reduces the temperature differential across the unit. When glass stays warmer, frames experience less thermal stress and lower heat transfer rates. This synergy between glazing and frame performance demonstrates why whole-unit optimization matters more than individual component specifications.
How does thermal bridging affect different window styles?
Operating window styles vary in their susceptibility to thermal bridging. Casement windows compress against weatherstripping when closed, creating excellent air sealing that minimizes bridging effects at the sash-frame junction. The crank mechanism allows consistent pressure around the entire perimeter.
Double-hung windows present more challenges. The meeting rail where sashes overlap creates potential thermal bridges. Quality manufacturers address this with interlocking designs and compression weatherstripping. The balance system that allows sash movement also requires careful design to avoid creating air leakage paths.
Fixed windows like picture windows offer the best thermal performance. Without operating hardware or weatherstripping requirements, manufacturers can optimize frame profiles purely for thermal efficiency. Combining fixed units with operating windows provides both ventilation and maximum energy performance in the same opening.
What role does professional installation play in preventing thermal bridging?
Installation quality determines whether products achieve their rated performance. Even thermally optimized windows fail when installers leave gaps, compress insulation, or create air leakage paths. Professional installation from experienced teams ensures proper integration with your building envelope.
Total Home Windows and Doors employs certified installers trained in thermal optimization techniques. They understand how to create continuous insulation planes, properly flash openings, and seal penetrations. This expertise transforms product specifications into real-world performance that reduces your energy consumption.
The company’s A+ BBB rating and 4.9 Google rating reflect consistent installation quality. Customer reviews frequently mention comfort improvements and energy savings—direct results of proper installation that eliminates thermal bridging. This track record provides confidence that your investment will deliver expected returns.
Addressing thermal bridging requires understanding how heat moves through building assemblies and selecting products designed to interrupt these pathways. Modern window and door technology offers solutions that dramatically outperform older products, but only when properly specified and installed. Working with experienced professionals who understand thermal dynamics ensures your home achieves maximum comfort and efficiency. The combination of advanced materials, proven designs, and expert installation creates building envelope systems that perform reliably through Canadian winters while reducing energy costs year-round.
Frequently Asked Questions (FAQ)
What is the most common cause of thermal bridging in windows?
Metal frames without thermal breaks create the most significant thermal bridging. Aluminum and steel conduct heat rapidly, creating cold spots and energy loss. Thermally broken frames or non-conductive materials like vinyl eliminate this problem.
Can you fix thermal bridging without replacing windows?
Temporary measures like interior storms, cellular shades, and improved sealing reduce thermal bridging effects but don’t eliminate the root cause. Complete resolution requires replacing poorly performing units with thermally optimized products designed to prevent heat transfer.
How much does thermal bridging increase heating costs?
Thermal bridging can reduce window thermal performance by 20-30%, increasing heating costs proportionally. A home with significant bridging issues might spend $200-500 more annually on heating compared to properly performing windows in Canadian climates.
Do vinyl windows eliminate thermal bridging completely?
Multi-chamber vinyl frames minimize thermal bridging significantly but don’t eliminate it entirely. Heat still transfers through the material, though much slower than metal. Foam-filled vinyl frames provide the best thermal performance in this category.
What’s the difference between thermal bridging and air leakage?
Thermal bridging involves heat conducting through solid materials, while air leakage is warm air physically escaping through gaps. Both waste energy but require different solutions—thermal bridging needs better materials, air leakage needs improved sealing.
