How to Measure Bay Window Angles Correctly

Measuring bay window angles correctly involves using a digital angle finder or protractor to determine the exact degrees where each window section meets, typically at 30, 45, or 90-degree angles. You’ll need to measure from the centre point where all sections converge, recording each angle separately, then verify your measurements add up to the total projection angle to ensure accuracy before ordering replacement windows or planning treatments.

Key takeaways

• Bay windows typically feature three sections joined at either 30-degree, 45-degree, or 90-degree angles, with 45-degree configurations being most common in Canadian homes
• A digital angle finder provides the most accurate measurements, though a traditional protractor and straight edge can work for basic assessments
• Always measure angles at multiple points along the window frame height, as settling or improper installation can create variations of up to 2-3 degrees
• Professional window installers recommend verifying that all measured angles sum correctly to the total bay projection before ordering custom bay windows
• Incorrect angle measurements can result in gaps, poor energy efficiency, and costly reorders, making precision critical for successful installation

When should you measure bay window angles?

You’ll need to measure your bay window angles in several specific situations. The most common scenario involves planning for window replacement when your existing units show signs of wear, condensation between panes, or drafts. Canadian winters are particularly harsh on window seals, making accurate measurements essential for proper fit.

Seasonal considerations matter too. Spring and autumn offer ideal conditions for measuring, as extreme temperatures can cause slight expansion or contraction in window frames. If you’re experiencing winter drafts or summer heat gain, these are clear signals that measurement and potential replacement should happen soon.

From a cost perspective, getting measurements right the first time prevents expensive reorders. Custom bay windows represent a significant investment, often ranging from $2,500 to $8,000 per unit installed. Precise angle measurements ensure you’re ordering exactly what fits your opening, avoiding the 15-20% restocking fees many manufacturers charge for custom orders.

You should also measure when planning window treatments, adding a bay window seat, or considering energy-efficient upgrades. Even cosmetic renovations require accurate angle data to ensure proper fit and function.

“Homeowners often underestimate how critical precise angle measurements are for bay windows. A difference of just two degrees can create gaps that compromise both aesthetics and energy performance,” notes Vitaly Shapiro, Vice President of Sales.

Tools and materials you’ll need

Gathering the right equipment before you start makes the measurement process significantly smoother. Here’s what you’ll need for accurate bay window angle measurements:

Essential tools:

• Digital angle finder or protractor (accuracy to 0.1 degrees recommended)
• 25-foot tape measure with metric and imperial markings
• Carpenter’s level (24-inch minimum)
• Pencil and notepad for recording measurements
• Straight edge or metal ruler (36 inches or longer)
• Step ladder or sturdy stool

Optional but helpful tools:

• Laser distance measurer for quick dimension checks
• Smartphone with angle measurement app as backup
• Camera or phone for documentation photos
• Masking tape for marking reference points
• Assistant to help hold tools and verify readings

Materials for documentation:

• Graph paper for sketching window configuration
• Calculator for verifying angle totals
• Clipboard for stable writing surface

Digital angle finders cost between $25 and $150 depending on features, whilst quality protractors run $10 to $40. Investing in reliable measuring tools pays dividends when ordering custom vinyl windows or planning installations.

Safety notes

Working around windows requires attention to basic safety protocols. Always use a stable ladder or step stool positioned on level ground, and never overreach whilst taking measurements. Have someone spot you when working at heights, especially when measuring upper portions of larger bay window installations.

Watch for sharp edges on older window frames, particularly if you’re dealing with deteriorated metal or splintered wood. Wear safety glasses when working overhead to protect against falling debris or dust. If you’re measuring windows on upper floors, ensure proper fall protection and consider hiring professionals for difficult-to-reach installations.

Be mindful of weather conditions. Avoid measuring during high winds, rain, or extreme cold, as these conditions affect both your safety and measurement accuracy. If you’re working with aluminum windows, be aware that metal edges can be particularly sharp after years of weathering.

“Safety should never be compromised for the sake of getting measurements. If a window seems difficult to access or measure safely, that’s exactly when you should call in professional help,” advises Eugene Siukayev, Project Manager.

Step-by-step instructions

Time required: 45-60 minutes for a standard three-section bay window

Step 1: Document the existing configuration

Start by photographing your bay window from multiple angles, including straight-on interior and exterior shots. Sketch a basic diagram showing the number of window sections and their approximate arrangement. Note whether you have a three-section, four-section, or five-section bay, as this affects your measurement approach. Most Canadian homes feature three-section configurations with a large centre window flanked by two angled side units.

Step 2: Identify the centre point

Locate where all window sections converge, typically at the interior wall line. This centre point serves as your measurement reference. Use your level to ensure you’re working from a true vertical and horizontal baseline. Mark this point lightly with pencil on the window frame or adjacent wall. For standard bay window dimensions, this centre point usually sits flush with the interior wall surface.

Step 3: Measure the first angle

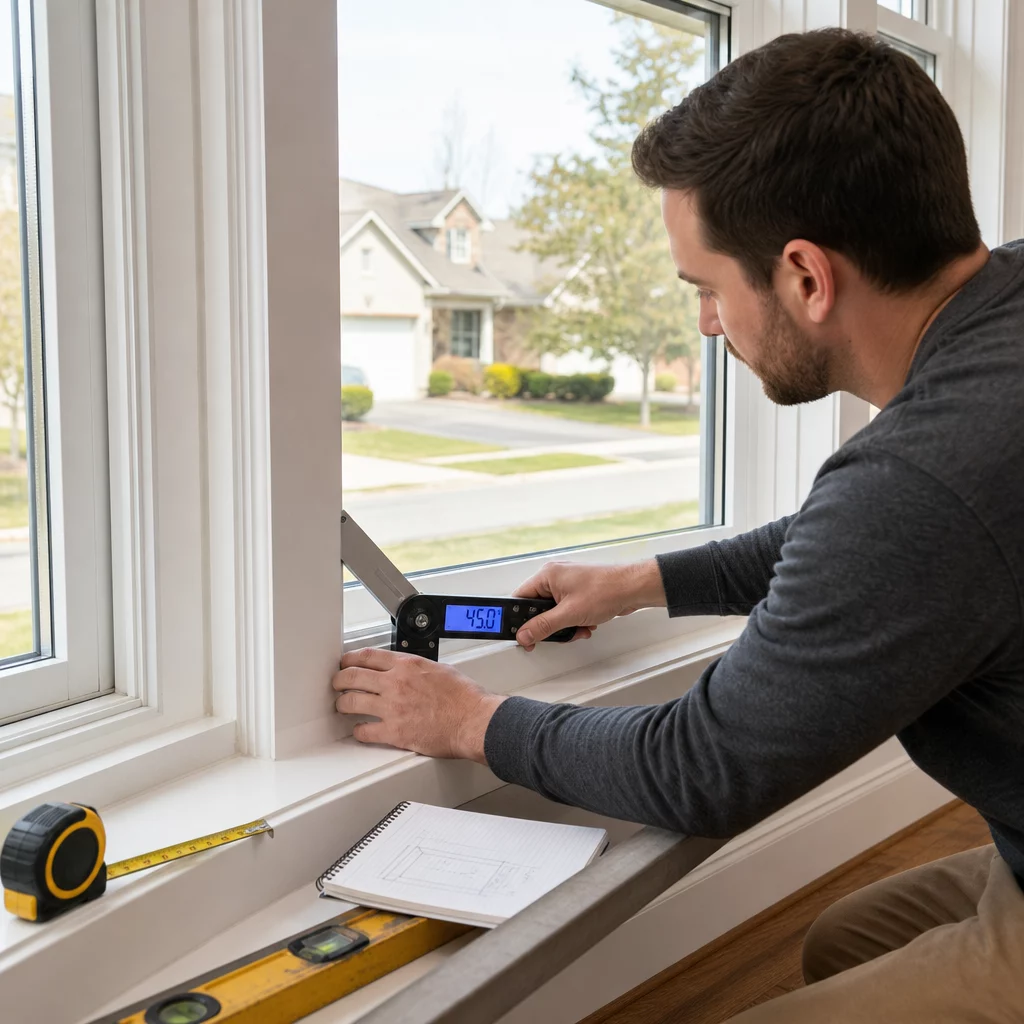

Position your digital angle finder or protractor at the junction between the centre window section and the first side section. Ensure the tool sits flat against both surfaces simultaneously. Take three separate readings and record all values. The most common angles you’ll encounter are 30 degrees, 45 degrees, or 90 degrees. If readings vary by more than one degree, reposition the tool and measure again.

Step 4: Measure the second angle

Repeat the process for the opposite side, measuring where the centre section meets the second side window. Record these measurements separately. In a symmetrical bay window installation, both angles should match. If they don’t, you’re likely dealing with settling, improper original installation, or a custom asymmetrical design that requires special attention during replacement.

Step 5: Verify measurements at multiple heights

Take angle measurements at three different heights: near the sill, at mid-frame, and near the head. Building settlement can cause angles to vary slightly from top to bottom. Record any variations greater than one degree, as these indicate potential structural issues that need addressing before installing new windows. This step is particularly important in older homes where foundation settling affects window frames.

Step 6: Calculate total projection angle

Add your measured angles together and verify they create the correct total projection. For a standard bay window, the two side angles plus the 180-degree centre section should equal 360 degrees when you account for the wall return angles. Use this formula: (90° – Side Angle 1) + 180° + (90° – Side Angle 2) = 360°. If your math doesn’t work out, remeasure each angle carefully.

Step 7: Measure frame dimensions

Beyond angles, record the width and height of each window section. Measure at three points across the width (left, centre, right) and three points down the height (top, middle, bottom). Use the smallest measurement for ordering purposes, as this ensures your new windows will fit even if the opening isn’t perfectly square. Standard tolerances allow for variations up to 1/4 inch.

Step 8: Document projection depth

Measure how far the bay window projects from the exterior wall. Use your tape measure to find the distance from the wall surface to the furthest point of the window. This measurement affects both replacement window specifications and any planned window treatments. Typical projections range from 12 to 24 inches in residential applications.

Step 9: Check for square and level

Use your level to verify each window section sits plumb (vertically straight) and level (horizontally straight). Note any sections that are off by more than 1/4 inch over their length. These irregularities need correction during installation to ensure proper operation of new windows and prevent future seal failure.

Step 10: Create a final measurement diagram

Transfer all measurements to a clean, detailed diagram. Include every angle, dimension, and note about irregularities. Label each measurement clearly and add the date. This document becomes your reference when consulting with window suppliers or installers. Keep digital photos alongside your diagram for complete documentation.

Common mistakes to avoid

Cost breakdown

Understanding the financial aspects of bay window measurement and replacement helps you budget appropriately and decide between DIY and professional approaches.

DIY measurement costs:

• Digital angle finder: $25-$150
• Quality tape measure: $15-$40
• Carpenter’s level: $20-$60
• Miscellaneous supplies (pencils, paper, tape): $10-$20
• Total DIY tool investment: $70-$270

Professional measurement services:

• In-home consultation and measurement: $75-$200 (often credited toward purchase)
• Detailed technical drawings: $100-$300 for complex configurations
• Rush measurement service: Additional $50-$100

Replacement window costs based on measurements:

• Standard three-section vinyl bay window: $2,500-$5,000
• Custom-angle configuration: Add 15-25% to base price
• Premium materials (fibreglass, wood): $4,000-$8,000
• Professional installation: $800-$1,500 per window

Factors affecting total price:

Window size significantly impacts cost, with larger bays commanding premium pricing. Energy-efficient features like Low-E glass or argon gas fills add $200-$500 per window. Custom angles beyond standard 30, 45, or 90-degree configurations increase manufacturing costs by 15-30%.

Geographic location matters too. Labour and material costs in Toronto or Mississauga typically run 10-15% higher than smaller Ontario communities. Seasonal demand affects pricing, with spring and autumn being peak seasons when contractors charge premium rates.

Incorrect measurements can prove extremely costly. Custom bay windows ordered with wrong angles may incur 15-20% restocking fees plus the full cost of reordering correct units. This mistake alone can add $500-$1,500 to your project budget, making accurate initial measurements essential.

DIY vs professional installation

Deciding whether to measure and install bay windows yourself or hire professionals depends on several factors including skill level, available time, and project complexity.

When DIY measurement makes sense:

• You have basic carpentry skills and own quality measuring tools
• The bay window features standard 30, 45, or 90-degree angles
• The existing installation appears square, level, and structurally sound
• You’re planning window treatments rather than full replacement
• Budget constraints make professional fees challenging
• You’re comfortable working at heights with proper safety equipment

When to hire professionals:

• Custom or unusual angle configurations that don’t match standard options
• Signs of structural settling, water damage, or rot around frames
• Multi-storey installations requiring specialized equipment
• You’re ordering expensive custom windows where errors prove costly
• Local building codes require certified measurements for permits
• The project involves structural modifications to window openings

DIY measurement benefits:

• Save $75-$200 on professional measurement fees
• Work on your own schedule without coordinating appointments
• Gain detailed understanding of your window configuration
• Develop skills useful for future home improvement projects

DIY measurement risks:

• Measurement errors leading to expensive reorders and delays
• Missing structural issues that professionals would identify
• Potential safety hazards when working at heights alone
• Lack of warranty protection if measurements prove incorrect

Professional measurement benefits:

• Guaranteed accuracy backed by company warranties
• Expert identification of structural or installation issues
• Detailed technical drawings suitable for permit applications
• Access to specialized measuring equipment and software
• Professional liability coverage if errors occur

Professional measurement risks:

• Additional upfront costs of $75-$200 per visit
• Scheduling delays during busy seasons
• Potential upselling of unnecessary services or upgrades
• Less personal involvement in understanding your home’s specifics

Most experienced contractors recommend professional measurement for actual window replacement projects, whilst DIY approaches work well for planning window treatments, estimating costs, or educational purposes. The modest investment in professional measurement often prevents significantly larger expenses from ordering errors.

“We’ve seen countless situations where homeowners measured carefully but missed critical details like frame deterioration or non-standard angles. Professional measurement isn’t just about accuracy—it’s about identifying issues before they become expensive problems,” explains Alexandr Naumov, Project Manager.

Ready to upgrade your bay windows?

Now that you understand how to measure bay window angles correctly, you’re equipped to move forward with your window project confidently. Whether you’ve completed DIY measurements or plan to schedule professional assessment, accurate angle documentation ensures your replacement windows fit perfectly and perform efficiently for decades.

Visit our showroom to see bay window options in person, or contact Total Home Windows and Doors for a complimentary in-home measurement consultation. Our experienced team will verify your measurements, assess your specific installation requirements, and provide detailed quotes for premium Canadian-made windows tailored to your exact specifications.

FAQ

How do I know what angle my bay window is?

Use a digital angle finder placed at the junction between window sections to measure the exact angle. Most residential bay windows feature 30, 45, or 90-degree angles. Measure at multiple heights and verify readings are consistent to confirm your window’s configuration.

Can bay window angles vary between top and bottom?

Yes, settling or improper installation can cause angle variations of 1-3 degrees between sill and head height. Always measure at multiple points vertically. Variations exceeding 2 degrees indicate potential structural issues requiring professional assessment before ordering replacement windows.

What’s the most common bay window angle in Canada?

The 45-degree angle configuration is most prevalent in Canadian residential construction, creating a balanced projection that maximizes interior space and exterior appeal. This standard angle simplifies replacement ordering and typically costs less than custom angle configurations.

Do I need special tools to measure bay window angles?

A digital angle finder provides the most accurate measurements, though a quality protractor and straight edge work adequately. You’ll also need a tape measure, level, and notepad. Professional-grade tools cost $70-$270 total and ensure precision necessary for custom window orders.

How accurate do bay window angle measurements need to be?

Aim for accuracy within 0.5 degrees for custom window orders. Variations beyond 1 degree can create gaps affecting energy efficiency and aesthetics. Professional installers typically measure to 0.1-degree precision using calibrated digital equipment to guarantee perfect fit and performance.
