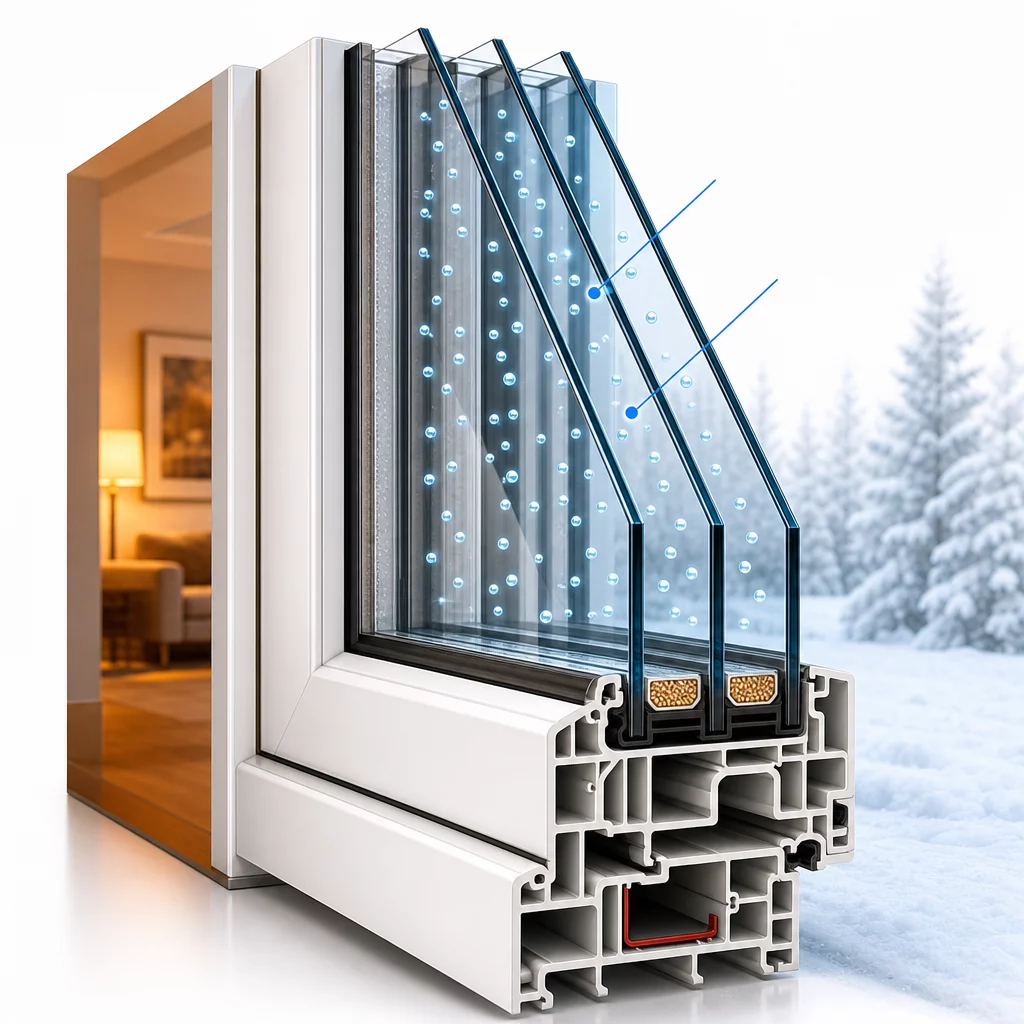

Krypton gas fill is a premium insulating gas used between window panes to enhance thermal performance beyond what standard argon gas or air can achieve. This colourless, odourless noble gas is denser than argon, making it more effective at reducing heat transfer through your windows. When manufacturers inject krypton into the space between glass panes, it significantly improves the window’s ability to maintain comfortable indoor temperatures while reducing energy costs. For Canadian homeowners facing harsh winters and hot summers, krypton-filled windows represent a top-tier solution for maximising energy efficient windows performance.
Key Takeaways
- Krypton gas is denser than argon, providing superior insulation in narrow window cavities (typically 6-10mm)
- It reduces heat transfer more effectively than air or argon, lowering heating and cooling costs
- Krypton-filled windows achieve better U-factor ratings, meeting and exceeding ENERGY STAR™ certification requirements
- The gas is non-toxic, stable, and maintains its insulating properties for decades when properly sealed
- Best suited for premium triple pane windows and specialty applications where space is limited
Window and Doors Replacement Near Me
Why Do Window Manufacturers Use Krypton Instead of Regular Air?
Standard air contains moisture and allows rapid heat transfer through convection currents between window panes. Krypton gas eliminates these problems through its unique molecular structure. As a noble gas, krypton doesn’t react with other materials, won’t degrade over time, and creates a stable thermal barrier.
The density of krypton is approximately three times greater than air and significantly denser than argon. This increased density slows molecular movement, which directly translates to reduced heat transfer. When you touch a krypton-filled window on a cold winter day, you’ll notice less coldness radiating from the glass surface compared to conventional windows.
“In my 15 years working with premium window installations, I’ve seen krypton gas deliver exceptional performance in luxury homes and energy-conscious renovations. The difference in thermal comfort is immediately noticeable, especially in rooms with large expanses of glass. Homeowners investing in vinyl windows with krypton fill consistently report lower energy bills and improved indoor comfort year-round.” – Vitaly Shapiro, Vice President of Sales
How Does Krypton Compare to Argon Gas in Window Performance?
Both krypton and argon belong to the noble gas family and serve similar insulating purposes, but they excel in different applications. The key difference lies in their molecular density and optimal cavity spacing. Argon gas windows work best with wider gaps between panes (12-16mm), while krypton performs optimally in narrower spaces.
| Property | Krypton Gas | Argon Gas | Regular Air |
|---|---|---|---|
| Thermal Conductivity | 0.0087 W/mK | 0.016 W/mK | 0.024 W/mK |
| Optimal Gap Width | 6-10mm | 12-16mm | N/A |
| Relative Cost | High | Moderate | None |
| Insulation Performance | Excellent | Very Good | Poor |
The superior thermal conductivity of krypton makes it the preferred choice for double pane windows where space constraints prevent wider cavity spacing. Manufacturers also use krypton in triple-glazed units where multiple narrow cavities provide maximum insulation without excessive window thickness.
What Are the Energy Savings Benefits of Krypton-Filled Windows?
Krypton gas directly impacts your home’s energy efficiency by reducing the U-factor of your windows. The U-factor measures how well a window prevents heat from escaping – lower numbers indicate better insulation. According to Natural Resources Canada, windows account for up to 25% of home heat loss during winter months.
Krypton-filled windows typically achieve U-factors between 0.15 and 0.25, compared to 0.25-0.35 for argon-filled units and 0.45+ for air-filled windows. This translates to measurable savings on heating and cooling costs throughout the year. Canadian homeowners can expect to reduce window-related energy loss by 30-40% when upgrading from standard windows to krypton-filled units.
The solar heat gain coefficient also benefits from krypton fill when combined with Low-E windows coatings. This combination creates a comprehensive thermal barrier that keeps heat out during summer and retains warmth during winter, optimising year-round comfort and efficiency.
Find the Best Window Styles for your Home
Which Window Types Benefit Most from Krypton Gas Fill?
Not all window applications require krypton gas – the premium cost makes it most suitable for specific scenarios. Understanding where krypton delivers the best return on investment helps homeowners make informed decisions about their window upgrades.
Premium Applications Where Krypton Excels
- Slim Profile Windows: Modern architectural designs often feature thin window frames where narrow cavities prevent argon use, making krypton the only viable gas fill option
- Triple-Glazed Units: Multiple narrow air spaces in triple-pane configurations benefit from krypton’s superior performance in tight spaces
- High-Performance Zones: North-facing windows, large picture windows, and rooms with significant glass exposure gain maximum benefit
- Luxury Installations: Bay windows, bow windows, and custom architectural features where performance is paramount
- Energy-Efficient Renovations: Homes targeting ENERGY STAR™ certification or passive house standards require the superior thermal performance krypton provides
“When working with clients on whole-home window replacements, I recommend krypton fill for specific applications rather than every window. Strategic placement in high-impact areas like large casement windows or north-facing bedrooms delivers the best value. This approach balances performance with budget, ensuring homeowners get maximum benefit where it matters most.” – Daniel Klein, Project Manager
Best window companies reviews
How Long Does Krypton Gas Remain Effective in Windows?
Quality window manufacturing ensures krypton gas remains effective for decades when properly sealed. The insulated glass unit (IGU) uses advanced sealing technology to prevent gas leakage and maintain thermal performance throughout the window’s lifespan. Reputable manufacturers like Total Home Windows and Doors use dual-seal systems that protect the gas fill from environmental factors.
Modern windows typically retain 80-90% of their original gas fill after 20 years of service. This retention rate depends on several factors including seal quality, installation precision, and environmental exposure. The warranty coverage from established manufacturers reflects confidence in long-term gas retention and overall window performance.
Regular inspection helps identify potential seal failures before significant gas loss occurs. Signs of compromised seals include condensation between panes, visible distortion, or noticeable temperature changes near the window surface. Professional window replacement ensures proper installation that maximises gas retention and thermal performance.
What Are the Cost Considerations for Krypton-Filled Windows?
Krypton gas represents a premium upgrade that typically adds 10-15% to the base window replacement cost compared to argon-filled alternatives. The higher expense reflects krypton’s rarity and more complex extraction process. However, the investment delivers measurable returns through reduced energy consumption and enhanced comfort.
| Window Type | Air Fill Cost | Argon Fill Cost | Krypton Fill Cost |
|---|---|---|---|
| Standard Double-Hung | $350-$500 | $400-$600 | $500-$750 |
| Large Picture Window | $600-$900 | $700-$1,100 | $900-$1,400 |
| Triple-Pane Casement | $700-$1,000 | $850-$1,250 | $1,000-$1,600 |
| Bay Window Assembly | $2,500-$4,000 | $3,000-$4,800 | $3,500-$6,000 |
Canadian homeowners should also explore available window rebate programs that offset premium window costs. Many provincial and federal initiatives provide incentives for installing high-performance windows that exceed minimum ENERGY STAR™ certification standards, making krypton-filled options more accessible.
How Does Krypton Contribute to ENERGY STAR Certification?
ENERGY STAR™ certified windows must meet strict performance criteria established for different Canadian climate zones. Krypton gas fill helps windows achieve the low U-factors required for certification, particularly in northern regions where thermal performance standards are most demanding. The combination of krypton fill, Low-E coatings, and quality frame materials creates a comprehensive high-performance system.
Windows using krypton typically exceed minimum certification requirements, placing them in the premium performance category. This superior rating translates to greater energy savings and improved comfort compared to entry-level certified products. Homeowners investing in windows for Canadian winters benefit from krypton’s ability to maintain indoor temperatures despite extreme outdoor conditions.
What Technical Features Complement Krypton Gas Fill?
Maximising krypton’s benefits requires integrating it with other advanced window technologies. Modern high-performance windows combine multiple features that work synergistically to deliver optimal results.
Essential Complementary Technologies
- Low-E Coatings: Microscopically thin metallic layers reflect infrared heat while allowing visible light transmission, working with krypton to minimise heat transfer
- Warm Edge Spacers: Advanced spacer systems reduce thermal bridging at glass edges, preventing the weak point that compromises even the best gas fills
- Multi-Chamber Frames: Vinyl or fibreglass frames with multiple insulating chambers complement krypton’s thermal performance throughout the entire window assembly
- Quality Weatherstripping: Superior seals prevent air infiltration around operable sashes, ensuring the thermal barrier remains intact
- Advanced Locking Systems: The TotalSeal Multi-Point Locking System provides both security and improved compression sealing for better energy performance
Can Existing Windows Be Retrofitted with Krypton Gas?
Unfortunately, adding krypton gas to existing windows isn’t practical or cost-effective. The gas must be injected during IGU manufacturing under controlled conditions with proper sealing systems. Attempting to retrofit gas fill into existing units risks seal damage and won’t achieve the performance of factory-filled windows.
Homeowners seeking krypton’s benefits need to invest in complete window replacement with new IGUs. Professional installation services ensure proper fitting, sealing, and performance. The comprehensive approach delivers better long-term results than attempting partial upgrades to existing units.
How Do Different Window Styles Perform with Krypton Fill?
Krypton gas enhances performance across various window styles, though some configurations benefit more than others. Fixed windows achieve the best thermal performance since they lack operable components that can compromise seals. Slider windows and double hung windows still gain significant benefits, though their moving parts create minor thermal bridges.
Specialty shapes like awning windows and tilt and turn windows maintain excellent performance with krypton fill when manufactured to high standards. The gas fill works equally well in various frame materials including vinyl, fibreglass, and aluminum windows with thermal breaks.
What Maintenance Do Krypton-Filled Windows Require?
Krypton-filled windows need minimal maintenance beyond standard window care practices. Regular cleaning with appropriate solutions keeps glass surfaces clear without affecting the sealed IGU. Homeowners should inspect weatherstripping annually and ensure drainage weep holes remain clear to prevent moisture accumulation.
Recommended Maintenance Schedule
- Monthly: Clean glass surfaces and check for visible damage or condensation between panes
- Quarterly: Inspect and clean weatherstripping, lubricate moving parts on operable windows
- Annually: Professional inspection of seals, hardware adjustment, and frame condition assessment
- Bi-Annually: Deep clean frames and tracks, verify proper drainage function
Identifying seal failure early prevents further damage and maintains energy efficiency. Any condensation appearing between glass panes indicates seal compromise requiring professional evaluation. Reputable manufacturers provide comprehensive warranties covering seal failures and gas loss, offering peace of mind for your investment.
How Does Climate Impact Krypton Window Performance?
Canadian climate extremes make krypton fill particularly valuable. During winter months when outdoor temperatures plummet well below freezing, krypton’s superior insulation prevents interior glass surfaces from becoming excessively cold. This reduces condensation risk and eliminates the uncomfortable cold radiation that standard windows produce.
Summer performance also benefits from krypton fill, especially when combined with low solar heat gain coatings. The gas barrier works bidirectionally, preventing outdoor heat from penetrating indoors while maintaining air conditioning efficiency. Homes in regions experiencing both temperature extremes gain year-round advantages from krypton-filled windows.
Investing in premium window technology like krypton gas fill represents a smart long-term decision for Canadian homeowners. The combination of reduced energy costs, improved comfort, and enhanced property value makes krypton windows an excellent choice for new construction and replacement projects. Working with experienced professionals like the team at Total Home Windows and Doors ensures proper product selection, expert installation, and lasting performance that protects your home investment for decades to come.
Frequently Asked Questions (FAQ)
Is krypton gas safe if a window breaks?
Yes, krypton is completely non-toxic and safe. As a noble gas, it’s chemically inert and won’t react with other substances. If a window breaks, the small amount of krypton simply disperses harmlessly into the atmosphere.
Can I tell if my windows have krypton or argon gas?
Visual inspection can’t distinguish between gas types. Check your window documentation, manufacturer specifications, or the NFRC label on the spacer. Professional testing equipment can also verify gas type and concentration levels.
How much does krypton gas add to window weight?
Krypton gas adds negligible weight to windows. The gas itself weighs very little, and the primary weight comes from glass and frame materials. Window weight considerations focus on glass thickness and frame construction rather than gas fill.
Will krypton windows reduce outside noise better than argon?
Krypton provides slightly better sound dampening than argon due to its higher density. However, glass thickness, lamination, and different pane thicknesses contribute more significantly to noise reduction than gas fill type alone.
Do krypton-filled windows qualify for better insurance rates?
Some insurance providers offer discounts for high-performance windows due to improved energy efficiency and durability. Contact your insurance provider to inquire about available discounts for ENERGY STAR™ certified window installations.
